Hearing Aid

General

• Power source 100 – 240V, 47 – 63Hz, 1.35A
• Dimensions: 31.75 x 31.12 x 10.8 cm (12.5 x 12.25 x 4.25 in.)
• Weight 3.45 kg (7.6 lbs )
• Display User-supplied, connected via HDMI or network.

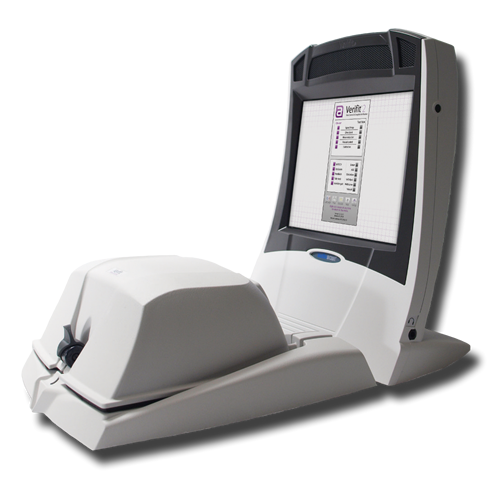

Binaural Test Box & REM

Iindustry’s only binaural test box and the only binaural patient positioning tool for accurate simultaneous binaural REM.

Speechmap®

Guided workflow makes hearing instrument verification and counseling intuitive while offering accurate results using the most advanced verification tools.

ProbeGUIDE

Software-assisted probe tube placement simplifies REM, saves time, and ensures consistent measurement results.

VerifitLINK

Verify and adjust hearing instruments to target automatically through a direct interface between the Verifit2 and hearing instrument manufacturer’s software.

Wideband Measurement

Verify extended bandwidth hearing instruments in Speechmap with wideband measurements to 12.5 kHz.

Audioscan Noah Module

Quickly transfer audiometry data stored in Noah into the Verifit2®, store and retrieve test results electronically, generate PDF reports that integrate with EMR systems, and view and control the Verifit2 from the PC in your office, or from a remote PC for teleaudiology.

Modular Solution

Four flexible versions. Choose modules for current needs, and easily add more as your requirements change. Version1 includes audiometry, REM, and visible speech mapping.

Innovative Testing

Now equipped with the Audible Contrast Threshold (ACT™) test that quantifies a person’s real-world ability to hear in noise.

Adaptable Audiometry

Tailor your test battery by purchasing only the licenses you need. Ambient Noise measurement feature gives you confidence in your audiogram – even in noisy places.

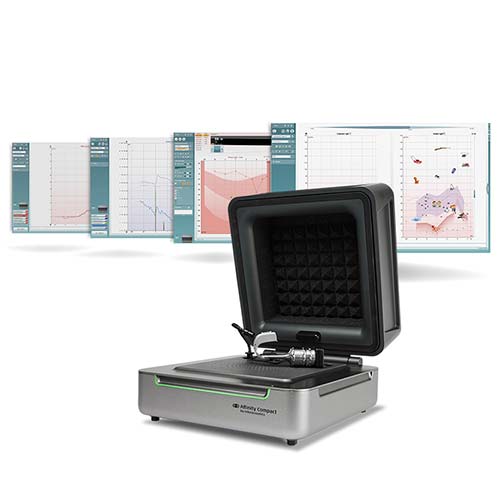

Made to Fit Your Clinic

Affinity Compacts’ design provides versatile placement options, including wall mounting, making it ideal for small spaces.

Specifications

• Stimuli: Warble Tone, Pure Tone, Random noise, Pseudo random noise, Band limited white noise, Chirp, ICRA, Real Speech, any other sound file (automatic calibration available).
• Frequency range: 100Hz – 10kHz
• Frequency accuracy: Less than ± 1 %
• Distortion: Less than 2%
• Intensity range: 40 – 90 dB
• Intensity accuracy: Less than ± 1.5 %
• Measurement Intensity Range: Probe microphone 40-140 dB SPL ± 2 dB.
• Frequency Resolution: 1/3, 1/6, 1/12, 1/24 octave or 1024 point FFT.
• Probe microphone: Intensity: 40 – 140 dB
• Reference microphone: Intensity: 40 – 100 dB
• Intensity Accuracy: Less than ± 1.5 dB
• Cross talk Cross talk in the probe and probe tube will alter the obtained results with less than 1 dB at all frequencies.

Specifications

• NOAH link compatibility
• Dynamic range 35dB -110dB

Information

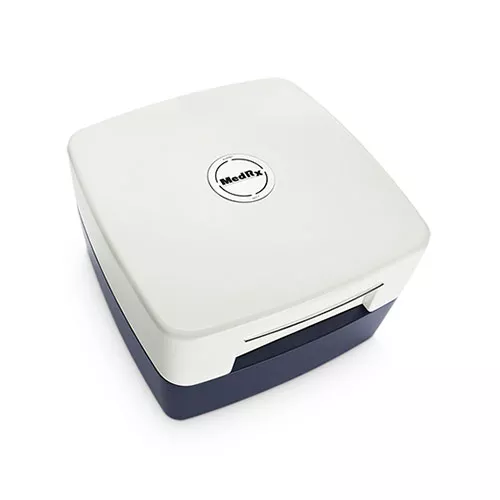

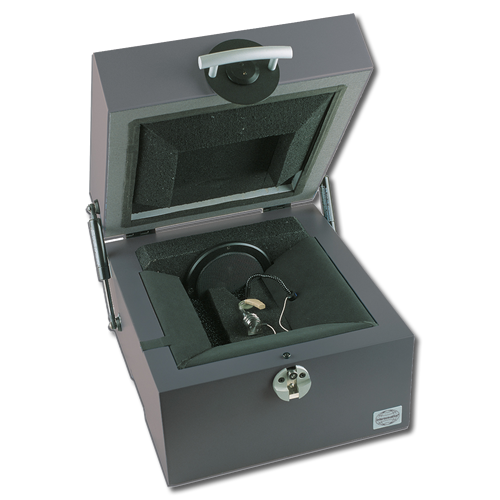

Very high noise rejection
Low frequency noise is prevalent and a problem in many buildings. It originates from sources such as distant traffic, doors, air-conditioning and machines. It travels relatively unrestricted through walls and floors and can be a significant problem when testing hearing aids. Low frequency noise rejection has traditionally been achieved with large sand filled test chambers. However, new materials and construction techniques have enabled the TBS25 to outperform these larger chambers by between 25dB and 40dB at low frequencies. High frequency noise rejection remains equal to that of the best traditional test chambers.

Specifications

REAL EAR MEASUREMENT

The Device Meets or exceeds all tests required in the ANSI S3.46-1997 Methods of Measurement of Real-Ear Performance Characteristics of Hearing Aids, along with the requirements of IEC/EN 61669:2001.

Specifications

• Speaker Output: Max 95 dB SPL

• Frequency Range: 125 Hz - 8000 Hz ± 0.5%

• Coupler Mic: Max Input Level: 140 dB SPL

• Reference Mic: Omni Directional Microphone

• Battery Simulator Output: Adjustable Output Voltage: 0.1V - 1.5V In 100mV Steps
• Accuracy ± 5%

• Current Measurement: 20uA - 20mA Accuracy ± 5%
• Battery Pills Provided: 10A, 13, 312 And 675
• Magnetic Loop: 31.6mA/m Magnetic Strength, Per ANSI Standard
• Communication Port: USB

• Power Requirements: USB Power

• Dimensions: (Approx.) 9.5” x 9.8” x 6” (W x D x H)

• Net Weight: Less Than 7 lbs

• Enclosure: Acoustically Dampened Enclosure

• Environmental Requirements: Working Temperature Range From 50°F To 95°F


Information

• PC Interface, Intuitive, User-Friendly, Easy Software Updates

• USB Connection, Simple One Cable, Computer Hook-Up

• Computer Printouts Eliminate Traditional Strip Chart Records Which Fade Over Time

• Multiple Test Setups - User Selectable Tests Allow Testing Flexibility And Customization

• NOAH™ and TIMS® Compatible

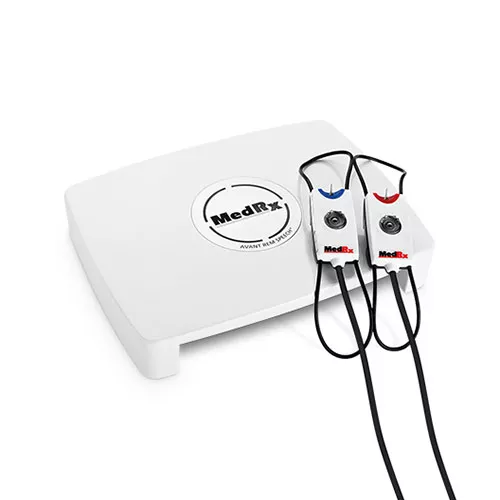

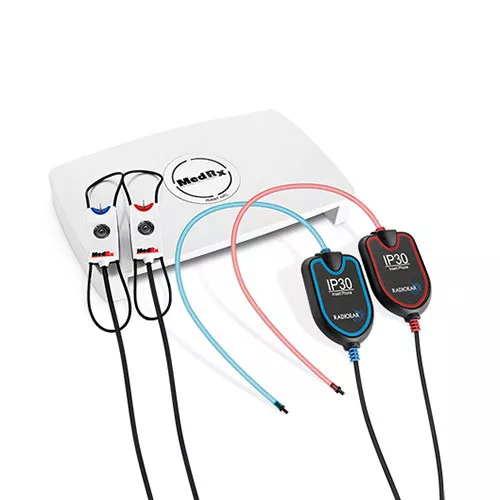

Specifications

• Probe Microphones (L/R): Dual Electret Microphone Elements (2 Probe Microphones)

• Probe Microphone Tube: Silicone 1.0 mm Nominal Diameter

• Measurement Range: 40 - 120 +- 3 dB SPL

• Measurement Frequency Range: 125 - 8000 Hz

• Test Stimuli: Broadband Noise and Synthesized Random Noise - Pink, White, Byrne LTASS and ANSI weighted; ICRA; ISTS; Microphone, File, CD-ROM for Live Speech Mapping , Chirp

• Test Stimulus Levels at 1m: 45 - 90 dB SPL in 1 dB Steps - 200 Hz thru 8K Hz (depending on speaker wattage & efficiency)

• Test Stimulus Accuracy: +- 3 dB SPL

• Equalization: Pressure Method

• Analysis Mode: User Selectable 1/3, 1/6, 1/12, 1/24, 1/48 Octave Bands


Information

• Sure -Probe™ microphone system with lighted visual cues and 2 probe microphones

• 2 headphones and a powered set of speakers

• Carrying case; USB cable; probe tubes; protective probe microphone storage box

• An external power supply is included for use with the internal stereo speaker amplifier

• Optional RECD Coupler
