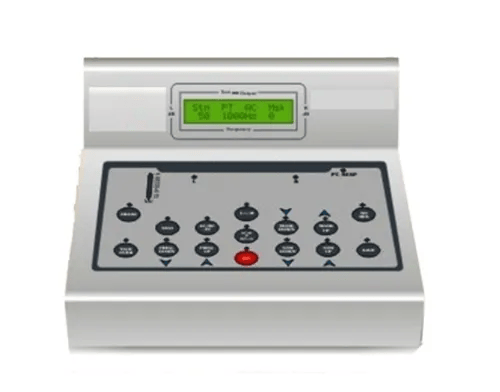

Audiometers

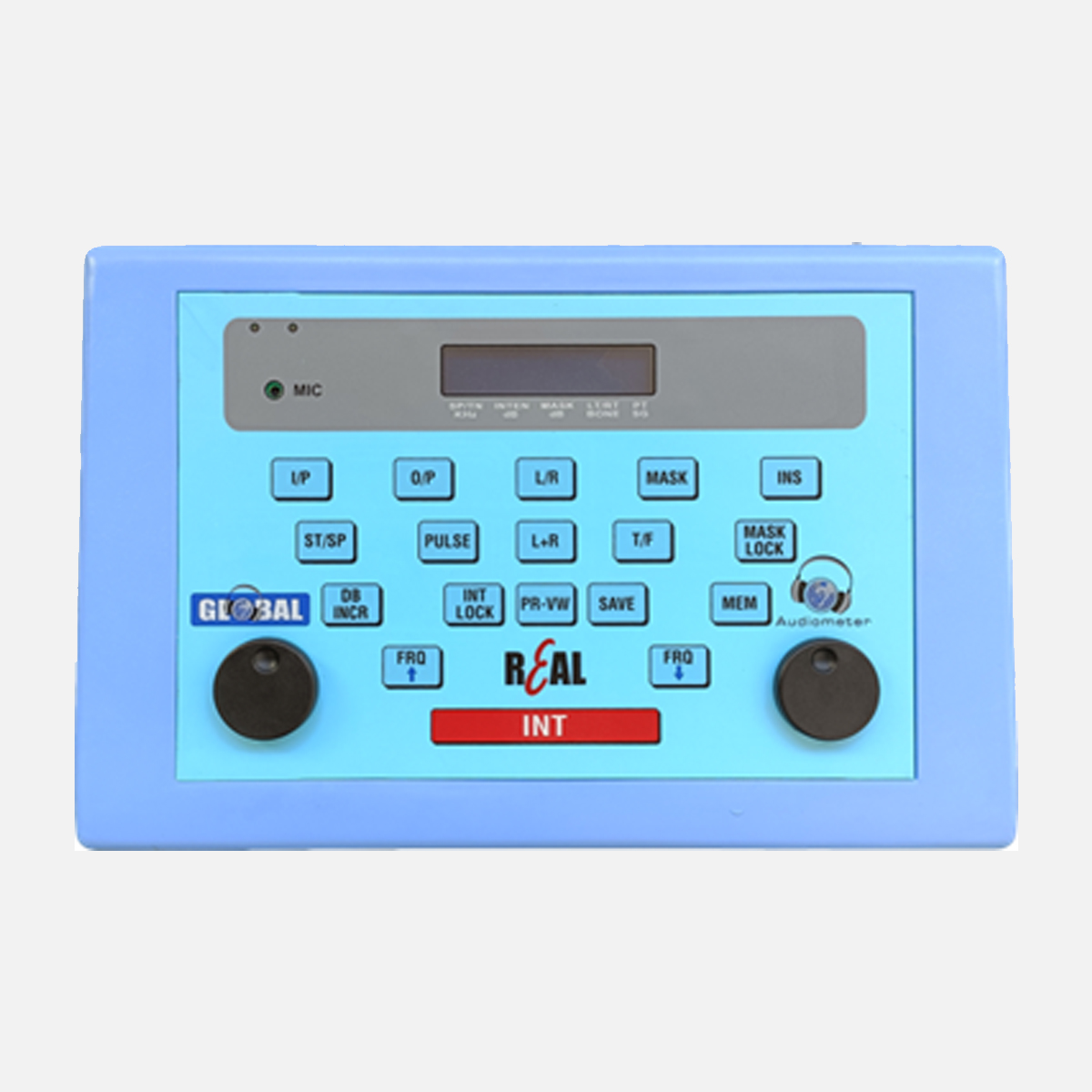

Features:

• Narrow & Speech band masking also available with wide band masking.
• Supplied with HD-01 Headphones (Made in Germany) and Global Bone vibrator as standard, Can accept both 8 and 10 ohm headphones.
• Optional TDH 39/49 and DR 51 available at extra cost.
• TONE DECAY test available along with pulse tone & +10dB facility.
• Digital calibration. (Can be calibrated from front panel without moving any part inside the audiometer.)
• With USB port for computer adaptability to operate through computer. Software provided Free of charge.
• 12 months warranty (Accessories not included) Free Field option included.
• AC Left & Right, BC Left & Right, Free field, Masking. Calibration can be done separately.

Switches:

• SAL
• AUTO AUDIOMETR
• Pulse tone
• Patient Data Saving (500 patients)
• Warble Tone
• Interrupt Lock
• SISI
• Insert Masking
• Optional ear muff rated at NRR 30
• 1)Rotary Switch for Puretone and masking attenuator. 2) Interrupt. 3) Interrupt lock.
• 4) I/P-Selection of Puretone-Speech M-Speech CD-SISI-ABLB-TD-Warble-Puretone
• 5) O/P- Selection of ACL ACR-BCL-BCR-F.FL-F.FR-ACL. 6) Pulse tone. 7) Talk Forward.
• 8) Masking Select-W.B, N.B. S.B. 9) ST/SP: Start stop for Sisi,TD and ABLb. 10) L/R Toggle 11)L+R
• 12) Insert Masking 13) Frequency Up And Down 14) Masking

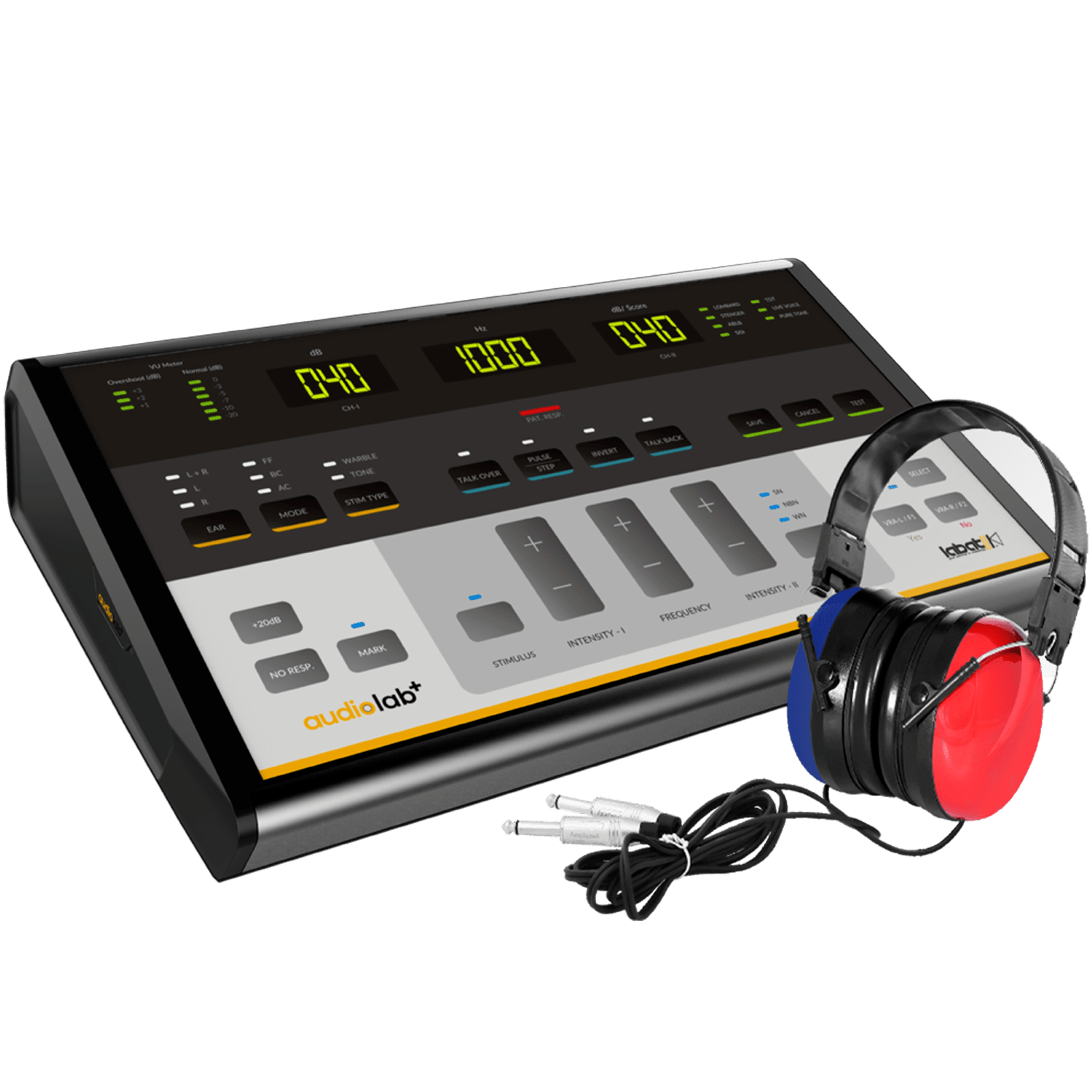

AUDIOLAB + is a True Hybrid Audiometer dedicated to provide you the best experience of the technological advancement happened in audiometers over the period in the Field of Audiology.It gives audiologist the seamless flexibility to use it as a STAND ALONE as well as with PC. Its advanced software AUDIOSOFT also enables the audiologist to use it via Touch screen devices.

• 2 Independent Channels
• Auto Synchronized Tone and Masking
• Empowering the practice of hearing across the globe with the much-awaited audiometer that meets global standards
• Highly Portable and study built for longevity
• LIVE voice, Embedded Speech (with Automated Speech Scorer) and Local Words* (No CD Player Required) No frequent calibration
• Real time plotting and updating of color coded audiogram and results
• Truly HYBRID - Works Stand-Alone as well as Touch enabled operation
• Unlimited test memory on the device itself

A Class-apart Audiometer enables you to perfrom audiometry at affordable price, Incorporated with the most advance technology.

• Highly Portable and study built for longevity
• Pure Tone Audiometry, Tone Decay Test, SISI*

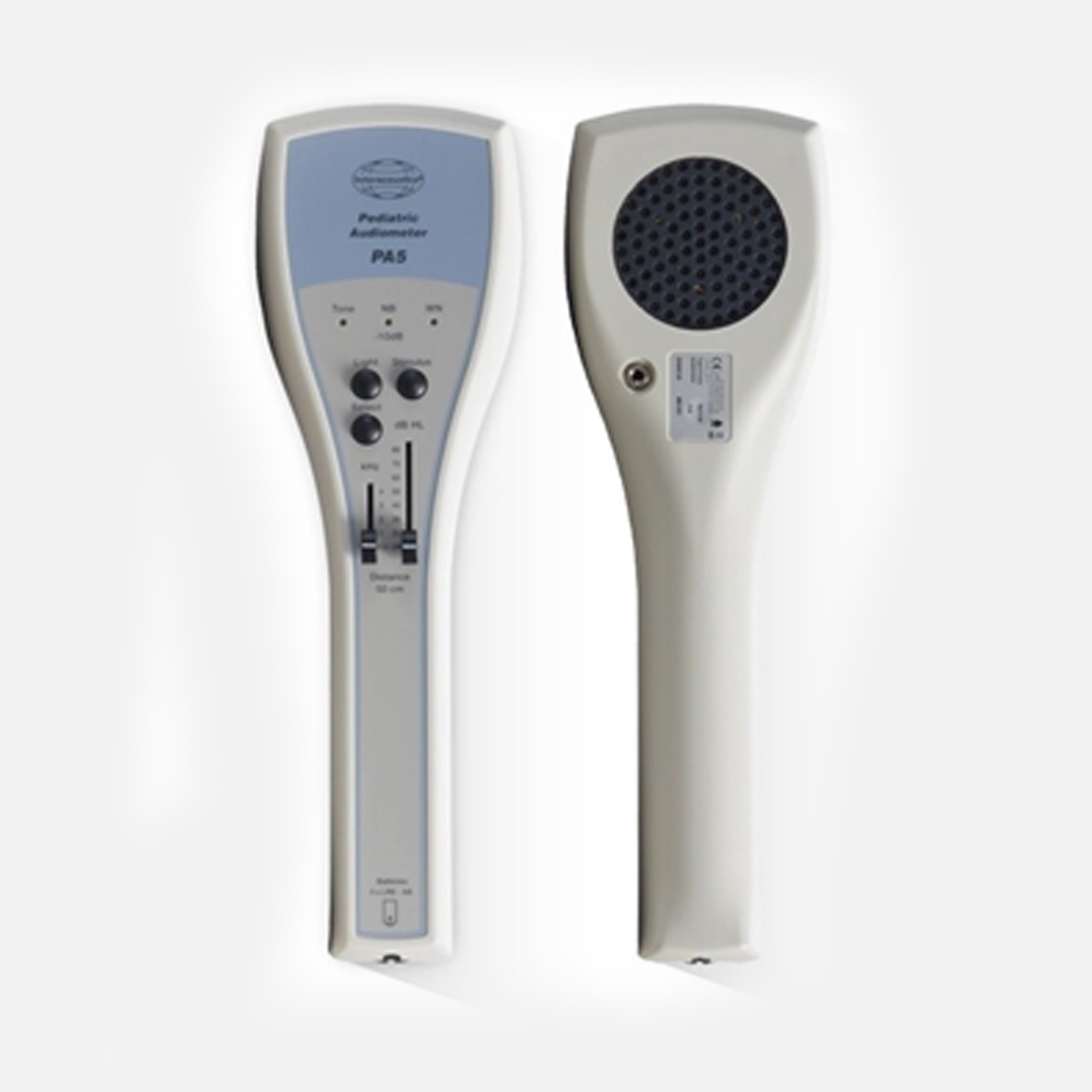

"The PA5 is a portable audiometer primarily used for conducting hearing tests in various environments. Its purpose is to assess individuals' hearing abilities quickly and accurately, making it valuable in clinical settings, schools, workplaces, and other locations where hearing screenings are necessary."

Portable Design: Compact and lightweight for easy transportation.

• Flashing Light Stimulation
• TDH39 Audiometric Headphone (Optional)
• Robust, Lightweight
• Standard AA Batteries
• Automatic Battery Switch
• Automatic Battery Indication

Specification:

• Storage space for 500 patients
• Portable: option to run on AA batteries
• Lightweight with optional carrying bag
• Weight: 1.3 kg / 2.9 lbs
• Compact footprint: 30x23x9 cm, 12x9x4 inches
• Portability: Excellent due to its lightweight design
• Office space suitability: Ideal for limited office space due to its compact size

Specification:

• Starts in a few seconds
• Easy to use
• Fast masking on/off
• 5" display
• CD, MP3, live voice, and built-in speech materials.

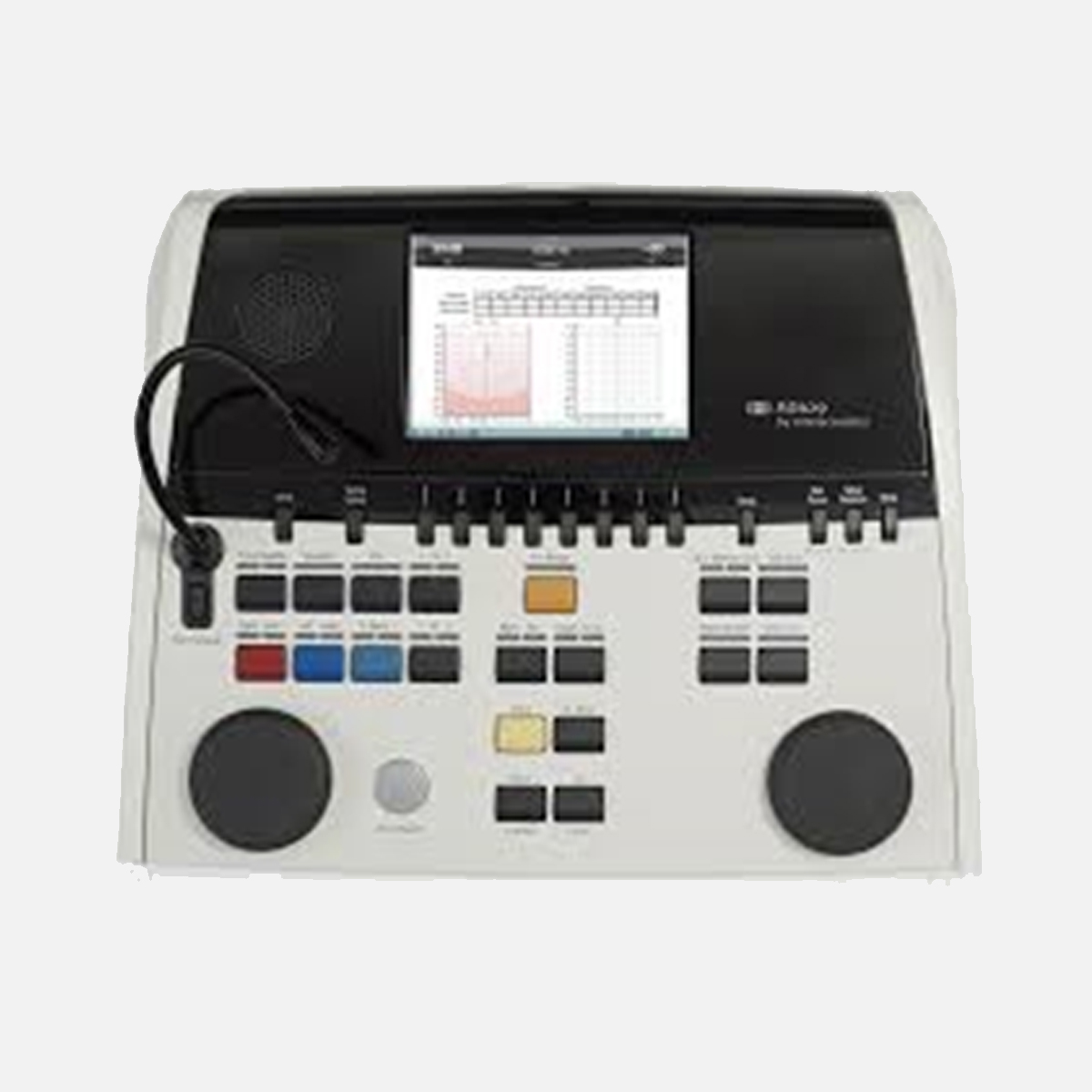

Specification:

• Full PC-integration (true hybrid)
• Extensive diagnostic test battery
• Large 5,7’’ adjustable high resolution graphical color display
• Internal storage for 500 patients/50,000 test sessions
• Integrated pre-recorded speech
• Multiple user settings (protocols)
• Direct print options
• Compact and portable design (35 x 29 cm / 14 x 11 inch.)

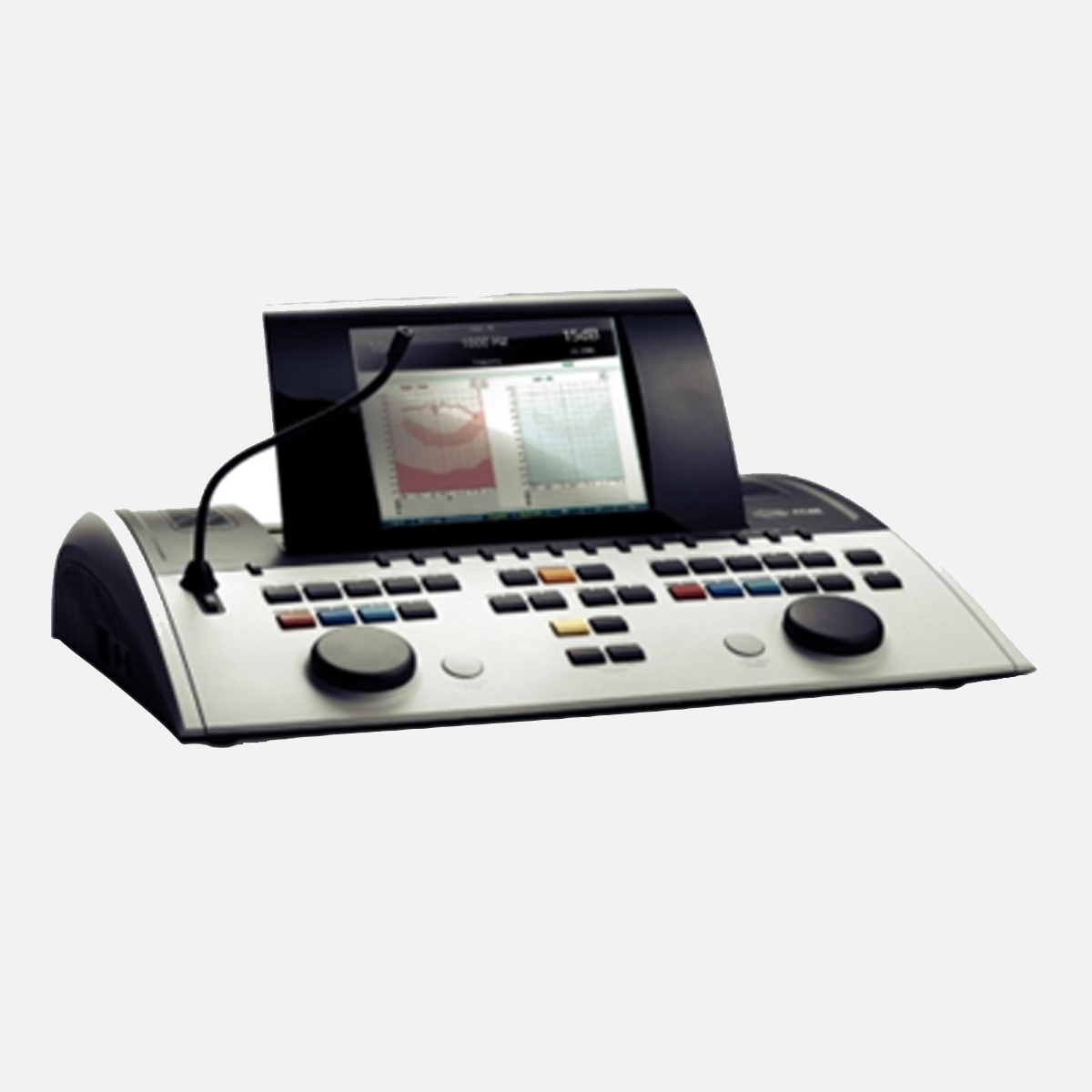

Specification:

• Full clinical test battery with dedicated screen layouts.
• Pre-programmed, user-defined, or automated test sequences.
• Patient counseling tools.
• High-frequency audiometry up to 20 kHz.

Specification:

• Fast, accurate impedance measurements with Choice of 226Hz or 1000Hz tympanometry probe tone (202-H)
• NOAH Compatible
• Programmable ipsilateral reflex tests and contralateral reflex tests
• Totally portable with Large graphics display
• User defined results recording options

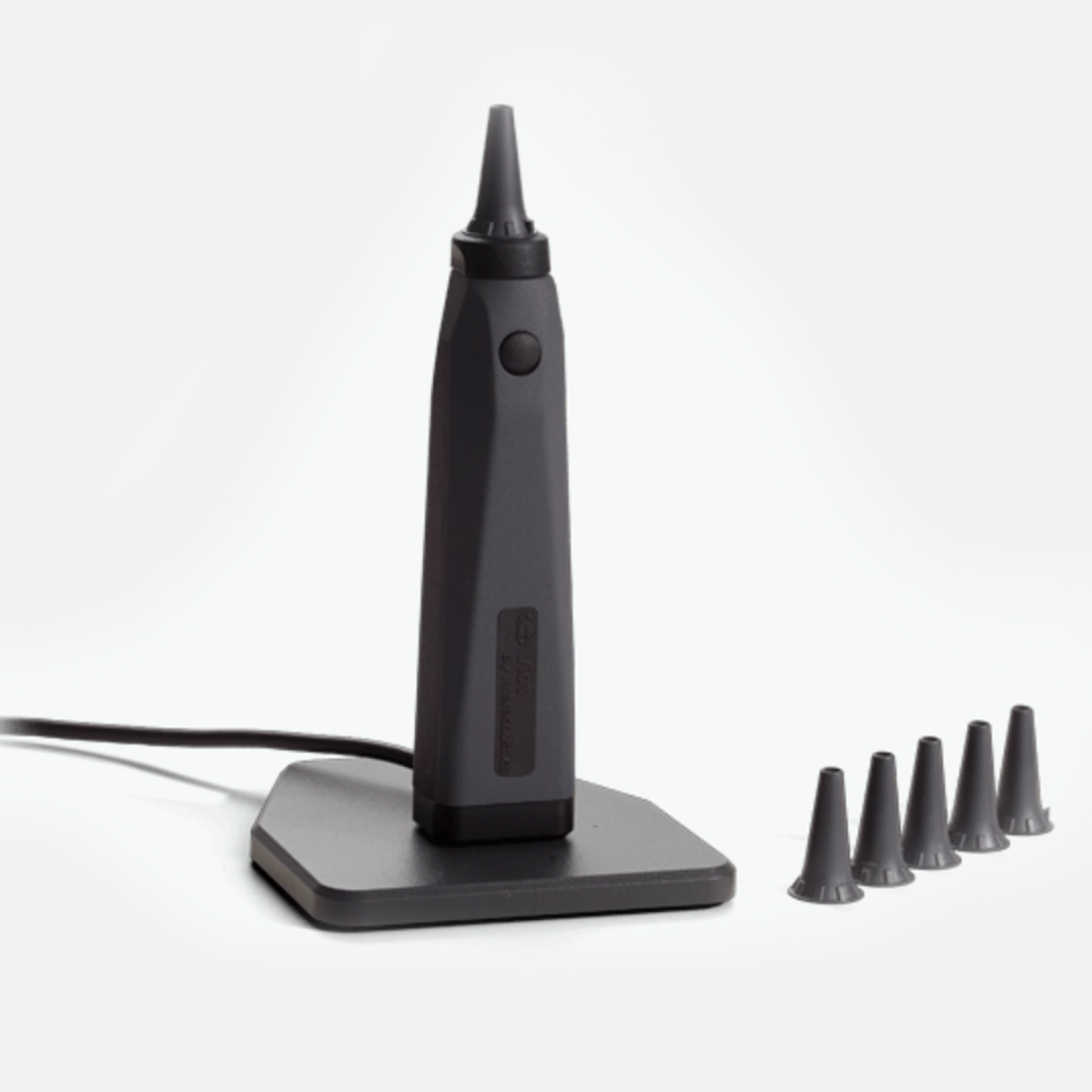

Specification:

• Ergonomic design for comfort and ease.
• Auto white balancing for instant use.
• Single-button control for full ear assessment.
• 90˚ angle view for simultaneous observation.
• Compatible with Viot™, Affinity2.0/Equinox2.0, Callisto™ Suites, and Windows®10.
• Fully integrates with Noah and OtoAccesss™ databases.

Specification:

• Adept as a portable audiometer
• PC-based testing
• No need for a power supply - connect to a USB port
• All-in-one - from audiometry to fitting of hearing devices
• Lightweight - only weighs 565 g
• Customizable test setups and report templates
• Visual and auditory counseling tools
• Digitized word lists from PC hard-drive
• Audiogram historical comparison overlay
• High Frequency Audiometry

Specification:

• 10" adjustable display and HDMI output.
• Reflex tests and reflex decay.
• Direct printing to PC printers.
• User-defined protocols.
• 226 Hz tympanometry

Audiometric Tests :

• Pure-Tone Audiometry with bone and air conduction, talk through, masking, free field and much more.
• Play audiometry MAGIC: Multiple-Choice Auditory Graphical Interactive Check

Speech tests in multiple languages :

• SUN: Speech understanding in Noise screening test
• UST: Universal Speech Test adaptable to different languages
• MATCH: Mainzer audiometric test for children - image based speech test for children from 2-5 years.
• MAUS: screening test for auditory perception and processing orders for children from 6- 11 years .

INPUT/OUTPUT :

Two set of connectors on the rear panel: one for cables coming from the audiometer/PC and the other one for connecting the detachable parts:

• Monitor headphone (3.5mm plug).
• Talk forward microphone (3.5mm plug),
• Desktop microphone (3.5mm plug).

OPERATOR INTERFACE :

• 50 buttons (30 with built-in LEDs) with single specific audiometric function
• 4 configurable buttons
• 2 capacitive interrupters
• 2 knobs

POWER SUPPLY :

• USB powered Power consumption: 5 Vdc, 0.25 A

MECHANICS :

• Size (WxDxH): 36 x 27 x 4 cm / 14.2 × 10.6 × 1.6 in
  Weight: approx. 1.2 kg / 2.6 lbs

INCLUDED PARTS :

• USB connection cable, 2 x stereo audio cables, 1.8m, 3.5mm plug - 3.5mm plug, 1 x mono audio cable, 2m, 3.5mm plug - 6.35mm plug, User manual

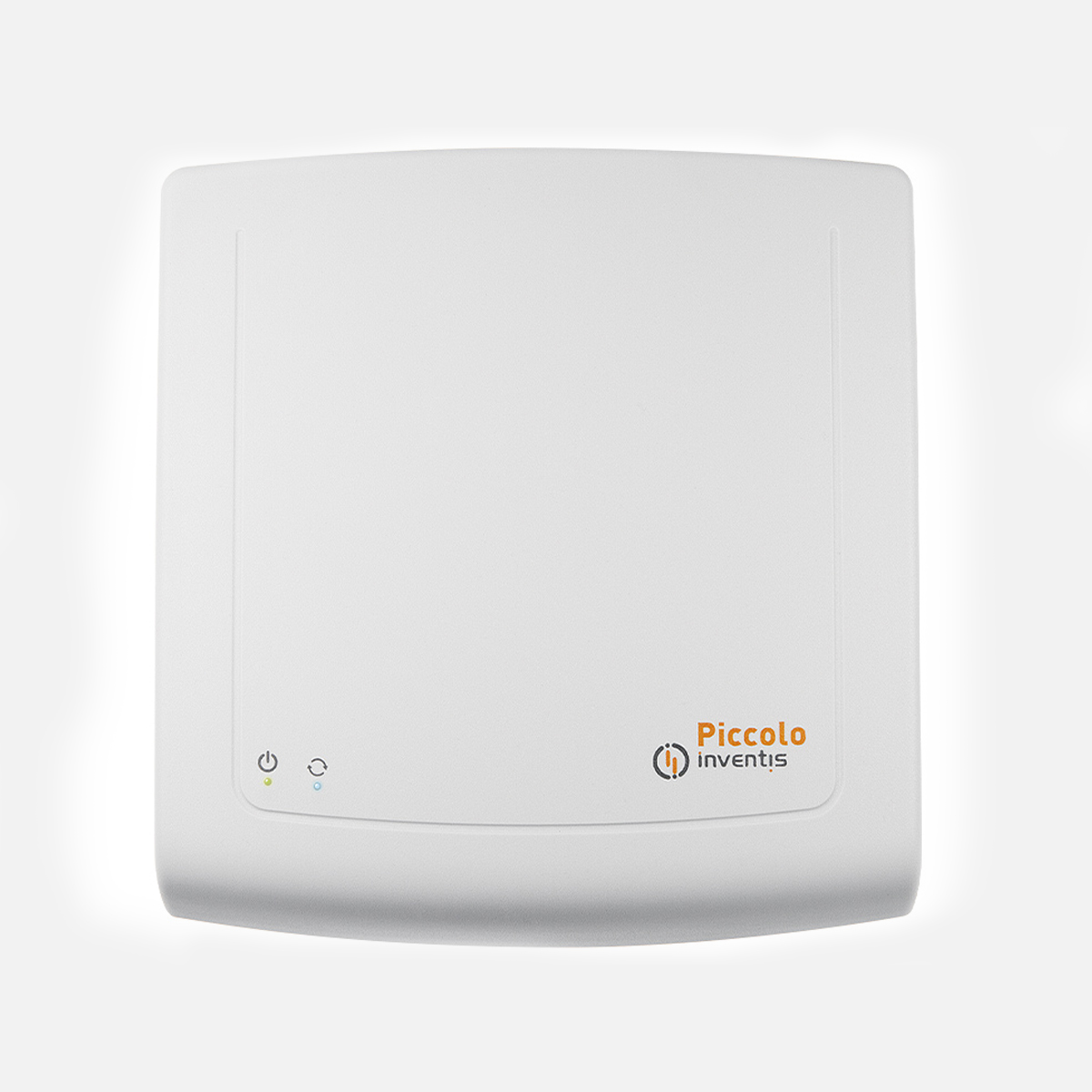

MODELS :

• Basic: only PTA – AC
• Plus: only PTA – AC / BC
• Speech: PTA & Speech – AC / BC

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking: NBN, WN, SN (Piccolo Speech only)
• Only Piccolo Speech:2 external inputs for speech audiometry
• MIC input for live speech audiometry

SIGNAL SPECIFICATION :

• Attenuator step: 1 dB, 3 dB, 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sine wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 / DD65 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator (Piccolo Plus / Speech only)

AVAILABLE TESTS :

• Pure Tone audiometry
• Automatic Pure Tone audiometry
• Speech audiometry (Piccolo Speech only)
• QuickSIN™ (optional for Piccolo Speech only)
• Master Hearing Aid (Piccolo Speech only)

VAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking (optional, with “Bone Connectivity” license): NBN, WN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (1 and 2 Hz)
• Warble: 5 Hz sine wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: DD45 or DD65 headphones, ER-3C insert earphones
• BC: B71 bone vibrator

AVAILABLE TESTS :

• Manual Pure Tone audiometry
• Automatic Pure Tone audiometry (available algorithms: HughsonWestlake, Quick Search, Fixed Intensity)

INTENSITY :

• AC: -10 to 100 dB HL
• BC: -10 to 60 dB HL

FREQUENCY RANGE :

• 125-8000 Hz

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking: NBN, WN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator (Plus only)
• Insert masking earphone: IME-100 (Plus only)

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)

PATIENT-OPERATOR COMMUNICATION :

• Talk over: built-in or external (optional) microphonePatient response trigger

INTERNAL DATABASE :

• Up to 100 patients both AC and BC thresholds

CALIBRATION :

• Validity: 12 months, All the parameters set through the device software

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• 2 external inputs for speech audiometry
• MIC input for live speech audiometry
• Internal input (flash memory) for speech audiometry

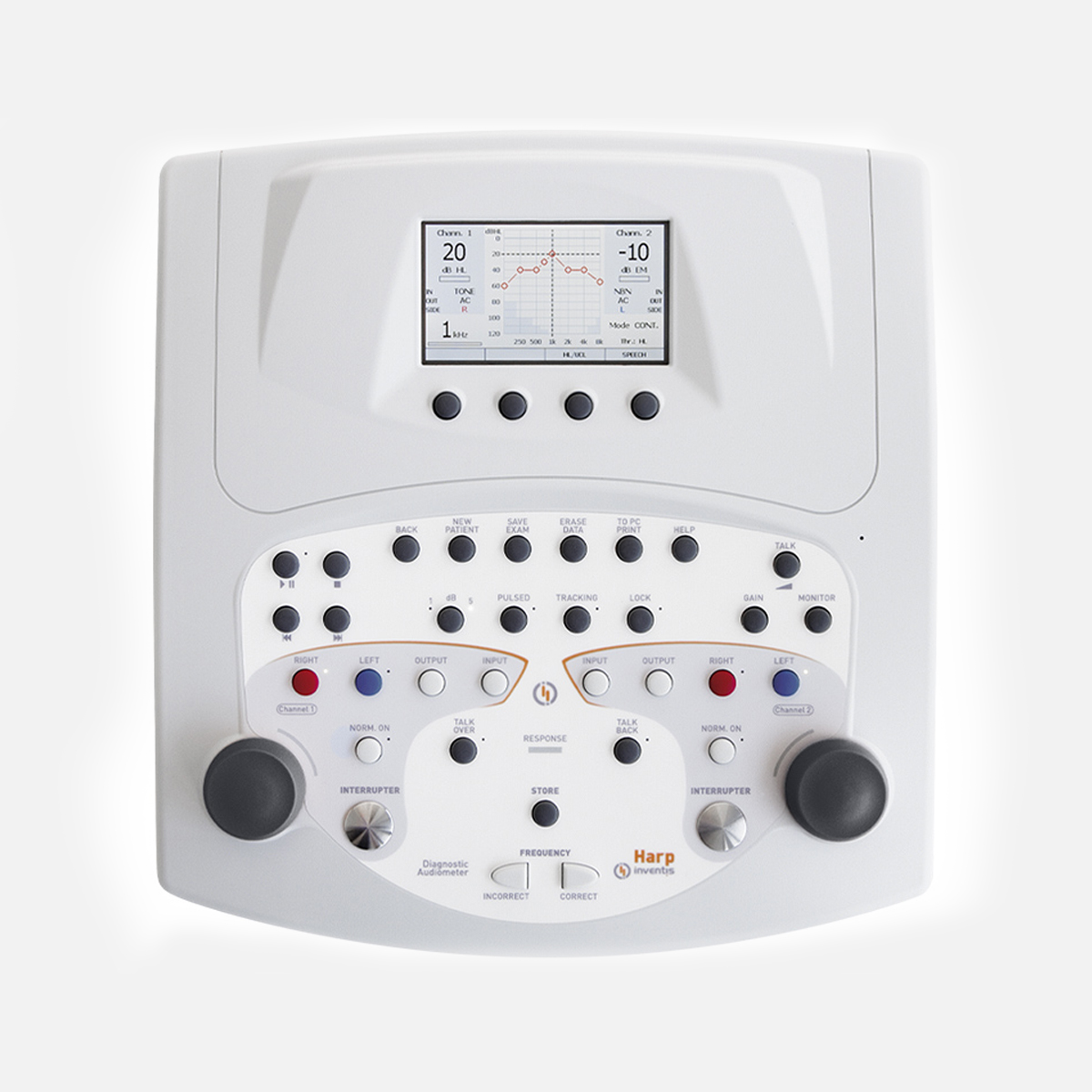

• (Harp Plus only) Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator Free field Insert masking earphone: IME-100

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)
• Speech audiometry (2 channels)
• ABLB
• SISI: automatic score; 1 dB increment (5 dB for familiarization)
• Stenger, with pure tone or speech stimulation
• Tone decay, with 60 or 120 sec. duration
• DLI, with increments between 0 and 5 dB
• 2 independent channels Master Hearing Aid

MONITOR SIGNAL :

• Both channels monitored through the built-in speaker or monitor headset (included)

INTERNAL FLASH MEMORY (ON LY HARP PLUS) :

• Used to store the speech material (.wav format)
• Capacity: 4 GB (more than 6 hours of speech
• Speech material upload: through ATIT software

INTERNAL DATABASE :

• Up to 100 patients both AC and BC thresholds (only pure tone exams

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• 2 external inputs and USB audio for speech audiometry
• MIC input for live speech audiometry
• Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 1, 2 and 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: Headphones (TDH-39 / DD45)
• HF headphones (HDA-300 / DD450)
• Insert earphones (ER-3 / IP30)
• BC: B-71 bone vibrator
• Free field Insert masking earphone: IME-100

AVAILABLE TESTS :

• Full audiometric evaluation: pure tone, auto thresholding, and high-frequency audiometry
• Speech assessment: srt, wrs, and loudness levels.
• Additional options: stenger, quicksin®, visual/play audiometry.

CALIBRATION :

• Validity: 12 months
• Separated calibration tables for each type of transducer (AC, AC-INS, AC-HF, INS-MASK, BC, FF)
• All the parameters stored in the device through a dedicated software

COMPUTER INTERFACE :

• Connection: USB (driverless)
• Compatible software: Inventis Maestro
• Minimum requirements: refer to Maestro software specifications

POWER SUPPLY :

• External medical grade power supply.
• AC consumption: 100-240Vac 50-60Hz 0.9-0.34A
• DC output: 6V, 2A cont.

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble ton
• 2 external inputs for speech audiometry
• MIC input for live speech audiometry
• Internal input (flash memory) for speech
• audiometry
• Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 1, and 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz or custom freq.), Single Pulse (with selectable duration)
• Warble: 5 Hz sin wave modulating signal.

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 or DD45 headphones, ER-3 or IP30 insert earphones, HDA-300 / DD450 headphones (Piano Plus / Plus VRA only)
• BC: B-71 bone vibrator Free field
• Insert masking earphone: IME-100

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)
• Speech audiometry (2 channels)
• ABLB
• MLB
• SISI: automatic score; 1 dB increment (5 dB for familiarization)
• DLI, with increments between 0 and 5 dB Tone decay, with 60 or 120 sec. duration Stenger, with pure tone or speech stimulation 2 independent channels Master Hearing Aid TEN test
• QuickSIN test (optional)

CALIBRATION :

• Validity: 12 months
• All the parameters set through the device software

COMPUTER INTERFACE :

• Connection: USB (driverless)
• Compatible software: Inventis Maestro

POWER SUPPLY :

• External medical grade power supply
• AC consumption: 100-240Vac 47-63Hz 0.9-0.34A
• DC output: 6V, 4,16A cont

Features at a Glance: :

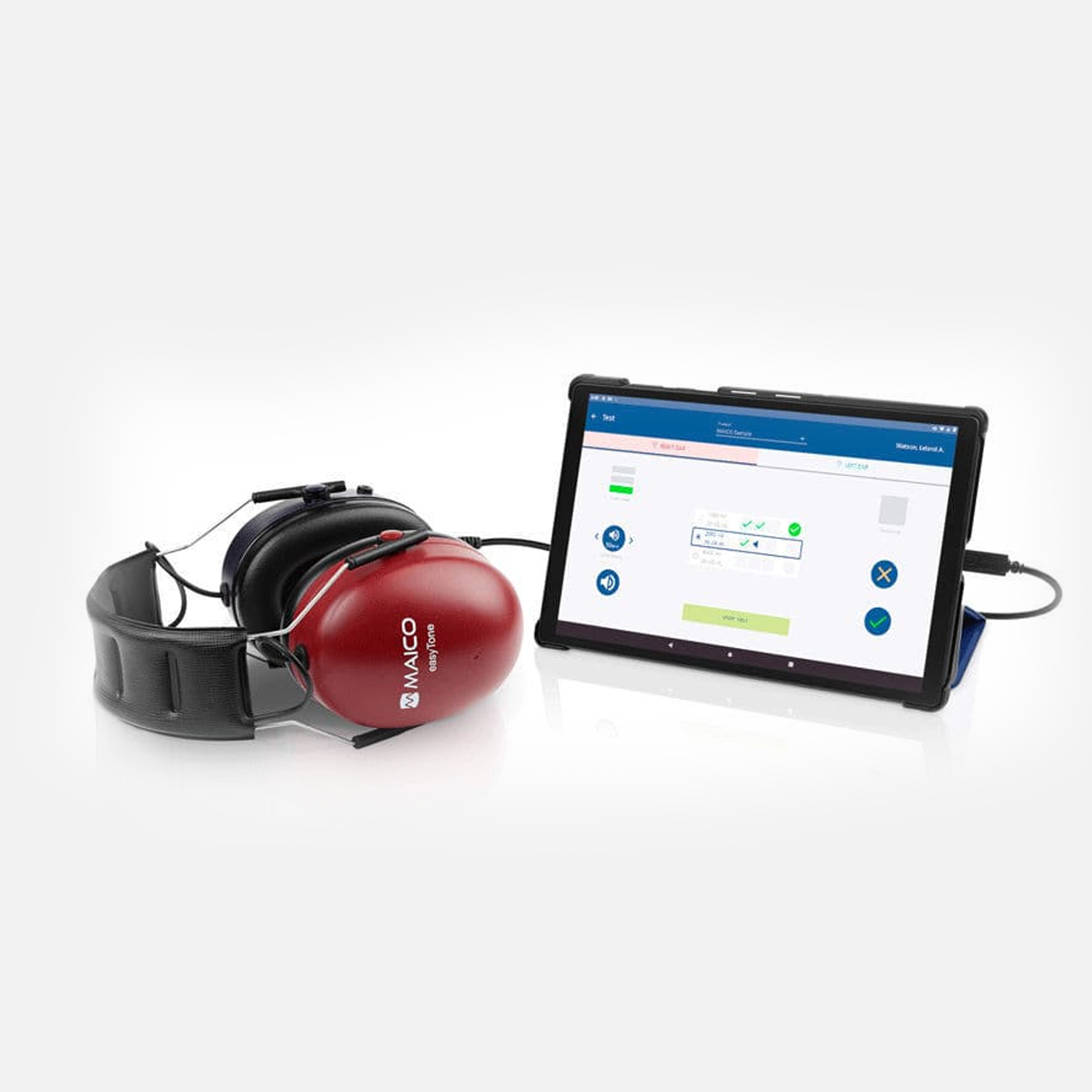

• State of the art tablet audiometer
• Audiometer built-in easyTone headphone
• Overall pass/refer result
• Easy transition from screening to threshold determination
• Guided workflow preventing operator errors and saving time
• Protocol wizard for easy set up
• Room noise monitoring
• Direct printout of results or share to e-mail
• Companion Software for screening list management

Features at a Glance: :

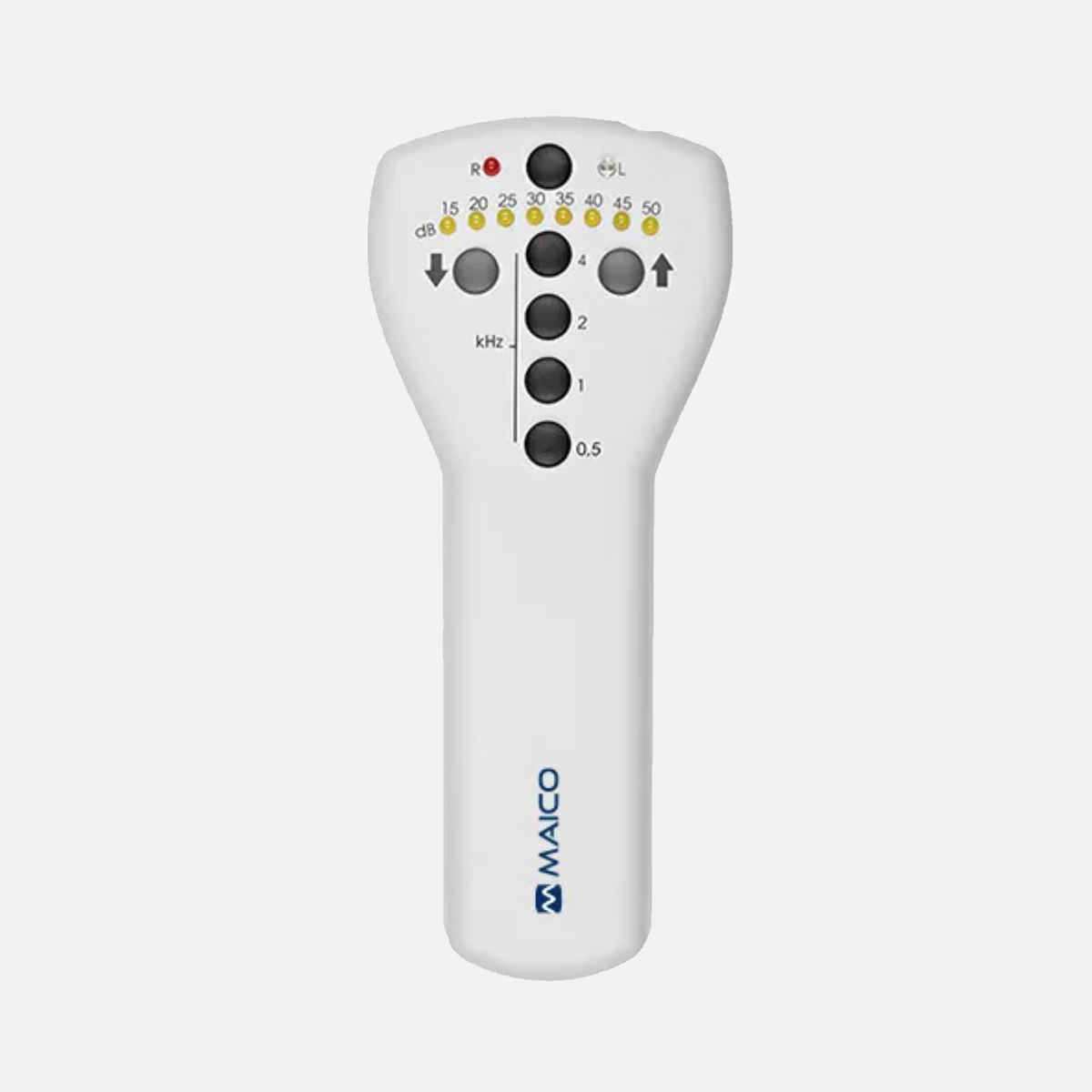

• Handheld air-conduction screener
• Easy one hand operation
• Exceptionally lightweight and portable
• Test frequencies: 500, 1000, 2000 and 4000 Hz
• Pure tone signal from 15 dB HL to 50 dB HL
• Battery operated (2 AA batteries)
• Automatic power off
• AC headset DD45
• Optional AC noise-enclosure headset DD65 v2

Features at a Glance: :

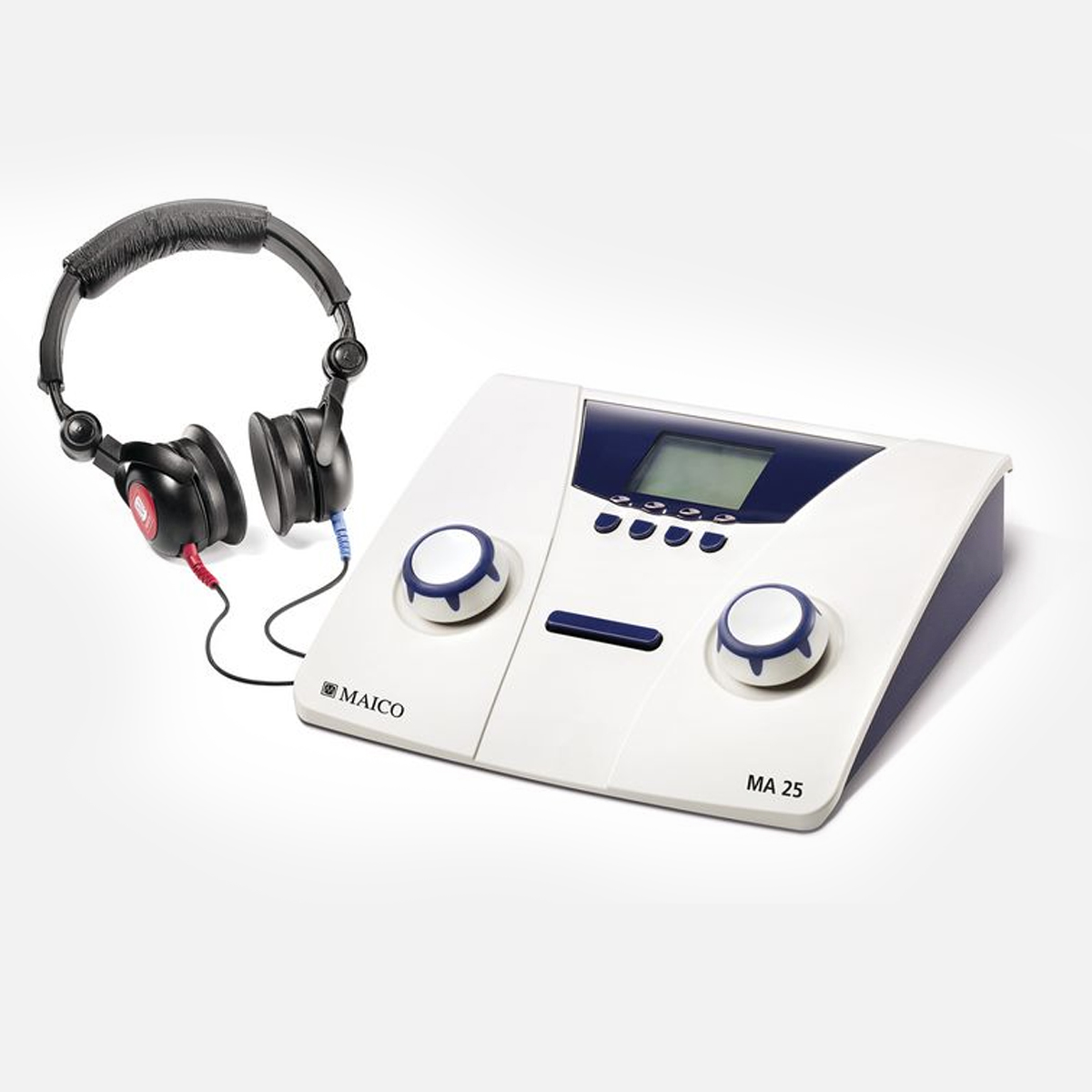

• Air conduction audiometer
• 11 frequencies from 125 Hz to 8000 Hz
• Test signals from -10 dB HL to 100 dB HL
• Pure tone and warble tone (pulsed or continuous)
• Portable and lightweight, only 980 g
• Use with 3 AA batteries, power supply or USB cable to PC
• MA 25e version including automated Hughson-Westlake test, talk forward and MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management
• Optional carrying case

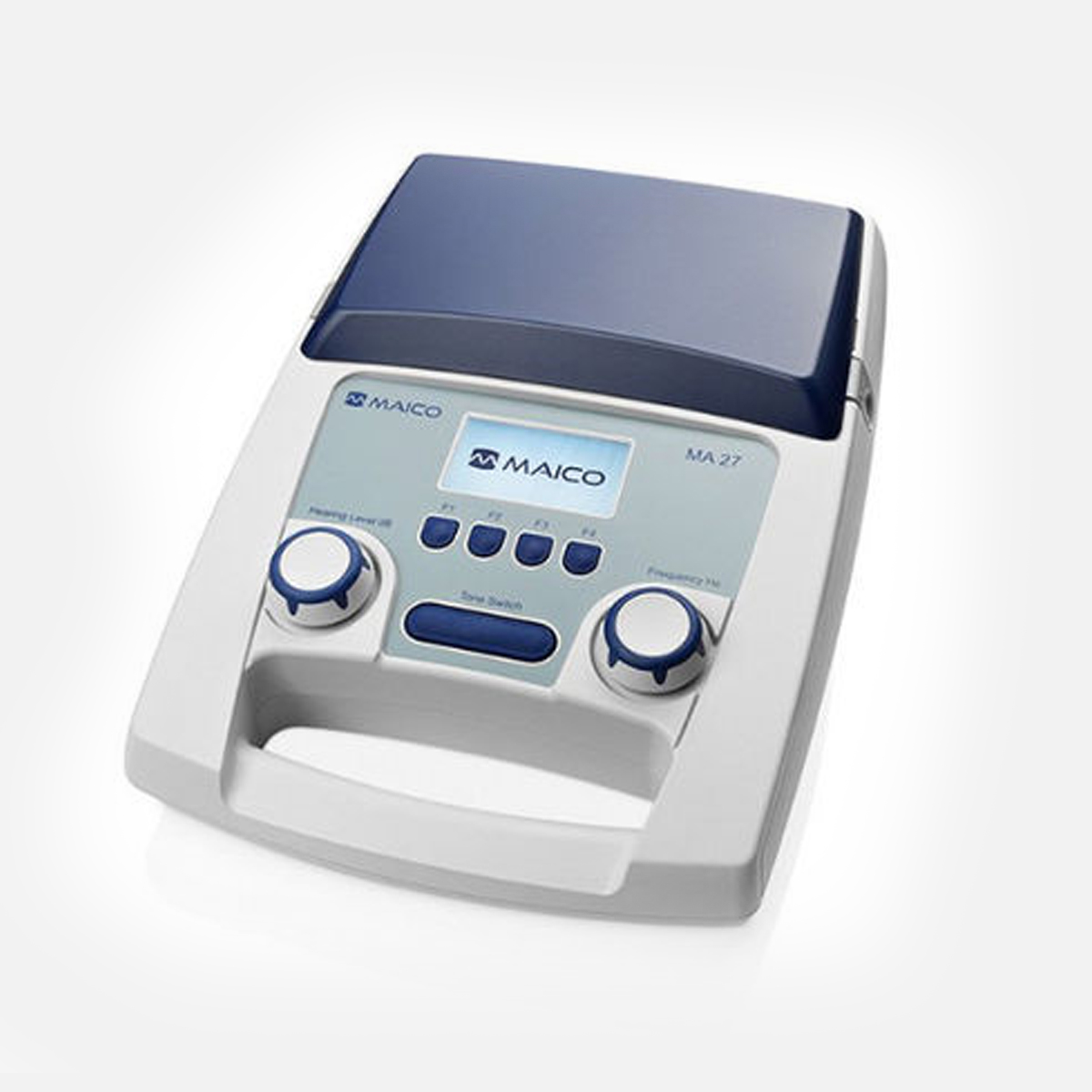

Features at a Glance: :

• Air conduction audiometer
• 11 frequencies from 125 Hz to 8000 Hz
• Test signals from -10 dB HL to 100 dB HL
• Pure tone and warble tone (pulsed or continuous)
• Compact and portable with built-in handle
• Integrated compartment for storing accessories
• MA 27e version including automated Hughson-Westlake test, talk forward and MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

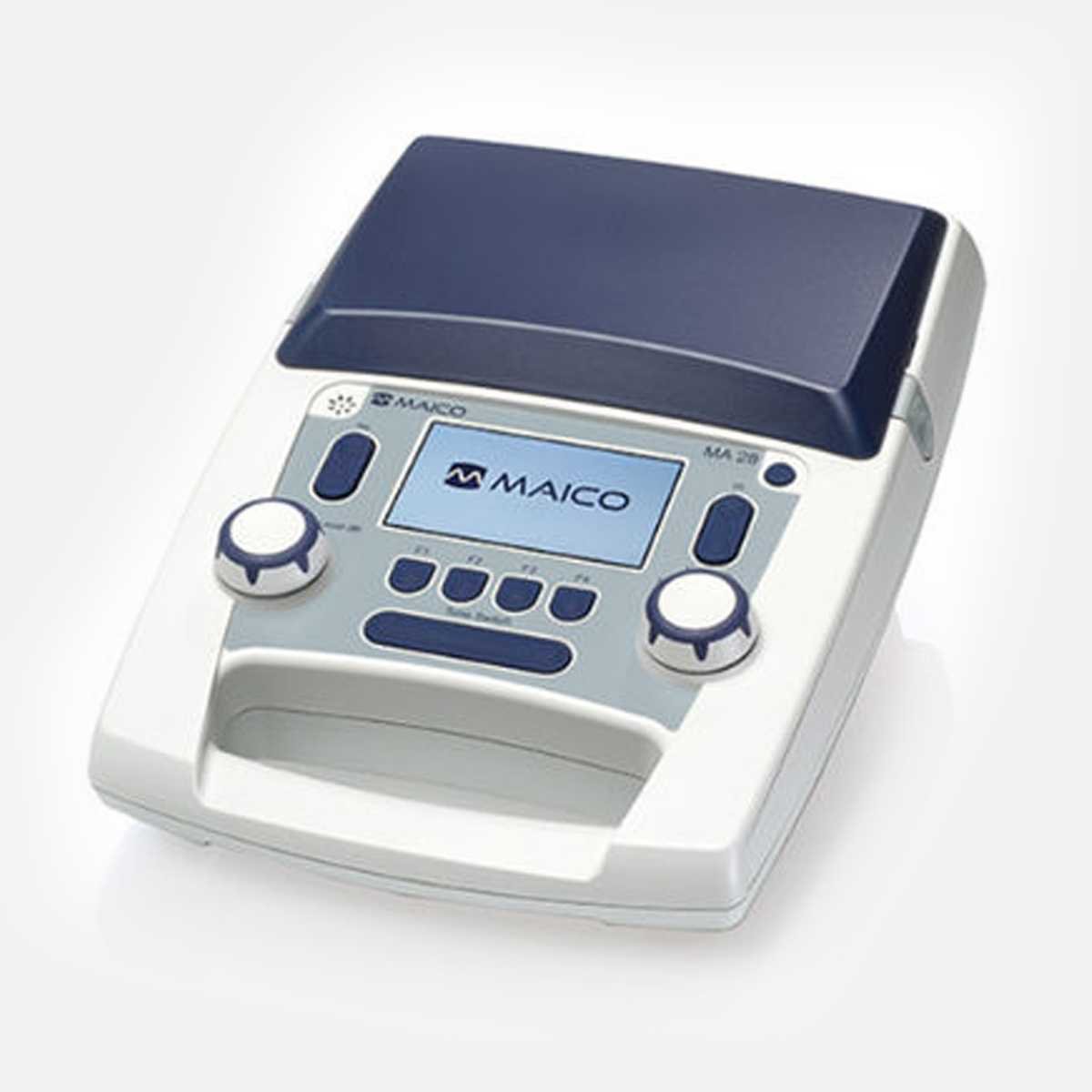

Features at a Glance: :

• Air conduction audiometry
• Optional bone conduction audiometry
• Compact and portable with integrated handle and compartment
• Large color display for easy operation
• Automated Hughson-Westlake included
• Internal database stores 500 patients (3500 tests)
• Optional thermal printer
• Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management

Features at a Glance: :

• Air Conduction and Bone Conduction
• Pilot-Hearing test for children
• SISI, Stenger and automatic Hughson-Westlake tests available
• Intuitive handling of the clearly presented user interface
• Operate at your convenience with your mouse or keyboard
• Small, fast, flexible and highly mobile
• Display and store your results in one second
• Includes MAICO Patient Database
• Easily expandable to future developments

Features at a Glance: :

• Air, bone and speech 2 channel audiometer
• Mixing signals and channels independently
• Connection of one or two AC transducers, BC and sound field testing
• Optional high frequency audiometry up to 16,000 Hz
• Advanced diagnostic test functions
• Included Special Tests: Pure Tone Stenger, Speech Stenger, MHA
• Optional Extended Special Tests: SISI, Tone Decay, ABLB, MLB, Langenbeck test
• Full colorful display with simple screen design
• Small footprint for ease of portability
• Easy access to talk forward, talk back and monitor functions
• Direct printout of the results, store report as PDF or quickly transfer to MAICO Sessions PC software
• Optional MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

Features at a Glance: :

• More than just an auditory test: Hearing – Understanding – Implementing
• 2-in-1 screening device: pure tone audiometry and select picture audiometry
• Pilot Hearing Test is available in different languages
• Colorful child-friendly device
• Full frequency range for pure tone testing (125 to 8 kHz)
• Large colorful LCD display screen
• Thermal printer optional
• MAICO Sessions PC Software optional
• OtoAccess® or Noah database optional

Features at a Glance:

• Quickly test up to 8 people at the same time
• Intuitive testing with TREMETRICS HearCon Software
• Optional room monitor for analyzing ambient noise
• Talk-over communication to any or all test subjects
• Portable and lightweight at 500 grams
• Automatic voice-instructions in multiple languages
• Automatic or manual testing with customizable settings
• Bio-Acoustic Simulator for daily calibration and checks
• Optional wall mount and insert ear phones
