Tympanometer

Interacoustics

Tympanometer

Interacoustics Titan

Optional high frequency probe tones(678, 800 and 1000Hz)
Features Impedance, ABRIS, OAE, & Wideband Tympanometry.

Interacoustics

Tympanometer

Interacoustics AT235

Internal memory that can store up to 500 clients and 50,000.
Direct printing to PC printers & Child distraction function

Interacoustics

Tympanometer

Interacoustics MT10

Ipsilateral Reflexes (optional) & 30 patient memory
Tympanometric data transfer & Advanced print layout wizard

INVENTIS

Tympanometer

Inventis Clarinet

Frequency: 226 Hz 678, 800, 1000 Hz (Clarinet Plus only)
Multi-component tympanometry (Plus only)

INVENTIS

Tympanometer

Inventis Flute

Frequency: 226 Hz; 1000 Hz (Flute Plus w/optional license)
Level: 85 dB SPL (@ 226 Hz); 75 dB SPL (@ 1000 Hz)

INVENTIS

Tympanometer

Inventis Viola

Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
Only Viola Plus: 2 external inputs for speech audiometry

INVENTIS

Tympanometer

Inventis Timpani

Optional integrated Bluetooth thermal printer Paper dimensions
Type: Graphical color TFT LCD, capacitive touchscreen

PathMedical

Tympanometer

Path Medical Sentiero // Tymp Diagnostic

Minimum DPOAE level criterion: L1 – 70 dB and 4096 samples
Display: 240 x 320 pix

PathMedical

Tympanometer

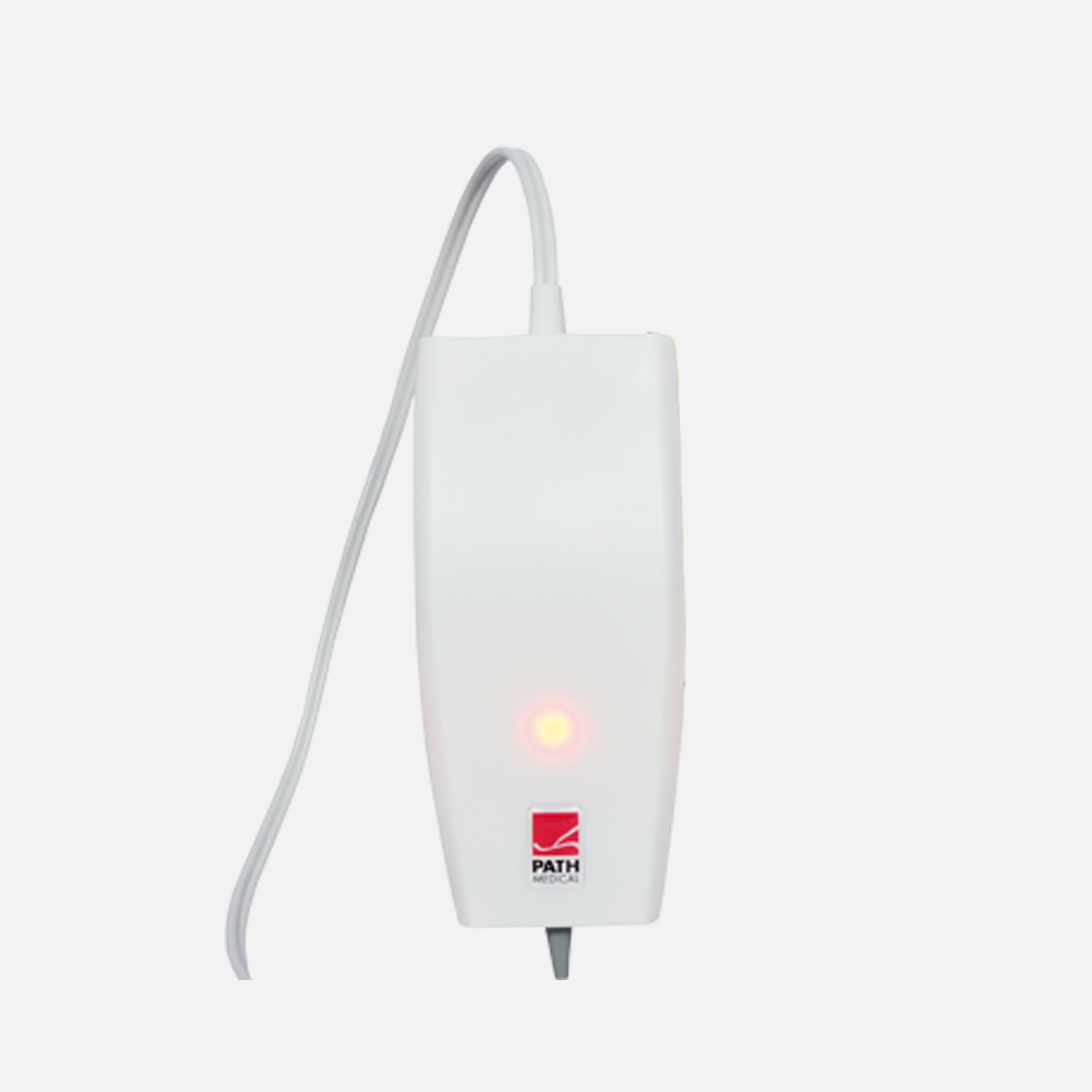

Path Medical nanoTymp

Device dimensions: 150 x 72 x 55mm & Device weight: ca.170g
Safety standards IEC 60601-1 and IEC 60601-1-2

PathMedical

Tympanometer

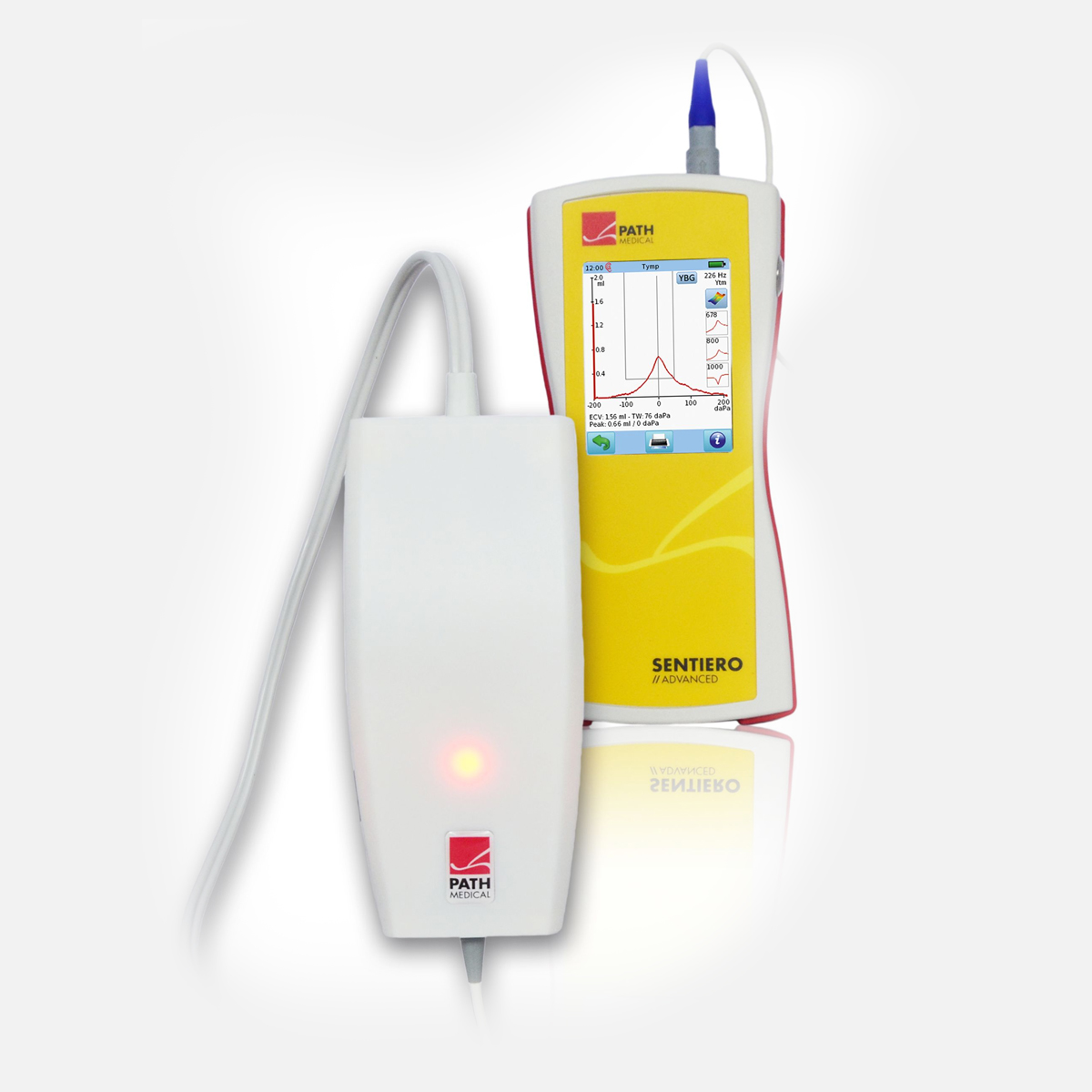

Path Medical Sentiero Advanced (TY-MA)

Upgrade your Diagnostic or Screening toolkit with the SENTIERO ADVANCED Tympanometry...

Maico

Tympanometer

Maico easyTymp Diagnostic

Reflex frequencies 500 Hz, 1 kH z, 2 kHz, 4 kHz (ipsi- and contralateral)
Probe tone 226 Hz

Maico

Tympanometer

Maico touchTymp Screening

Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsilateral and optional contralateral)

Maico

Tympanometer

Maico touchTymp Diagnostic

High resolution and quick screen transitions
Full touch-based interface for intuitive handling

Maico

Tympanometer

Maico touchTymp
RaceCar

Focused, engaged patient means less retesting
Easy, fun middle ear testing for children

Maico

Tympanometer

AT235

The AT235 is an automatic middle ear analyzer ideal for both diagnostic and clinical evaluations. The device also includes pure tone audiometry and the Modified Hughson Westlake audiometry test.

Interacoustics

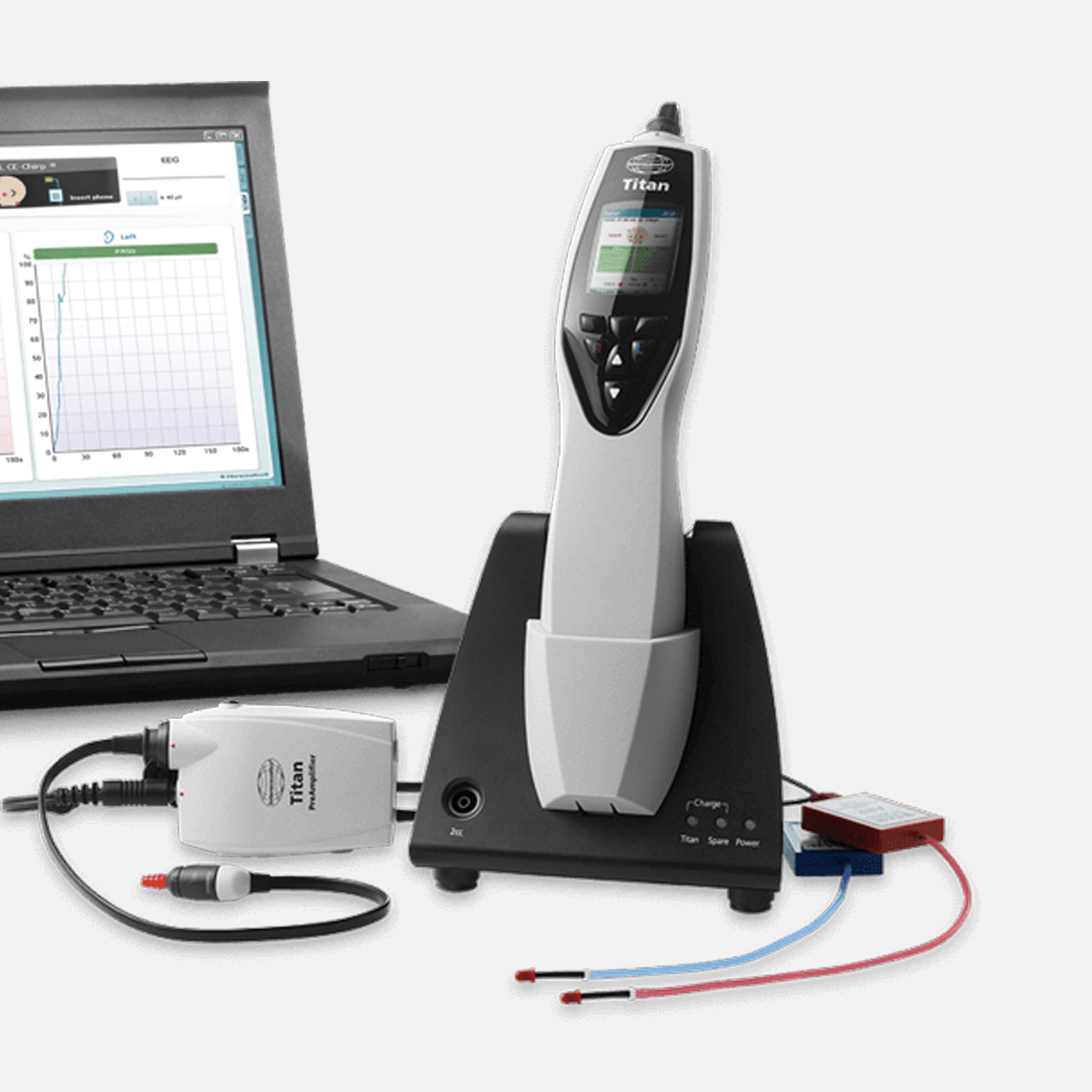

Model Name : Titan

Tailor your Titan to suit your screening, diagnostic, and advanced clinical testing requirements. Align the modules with your present needs, and seamlessly upgrade as your challenges evolve. The Titan offers Impedance, ABRIS, OAE, and the groundbreaking Wideband Tympanometry functionalities.

Features at a Glance:

Optional high frequency probe tones(678, 800 and 1000Hz)
High resolution color display
Powerful 3D image of tympanometric data across a full range of frequency and pressure.
DP range 0.5-6 kHz
TE range 1-4.5 kHz (60-84 dB SPL)
Features Impedance, ABRIS, OAE, and Wideband Tympanometry.
Utilizes "Endless Airflow" pressure control technology.
Offers high-resolution recordings.

Interacoustics

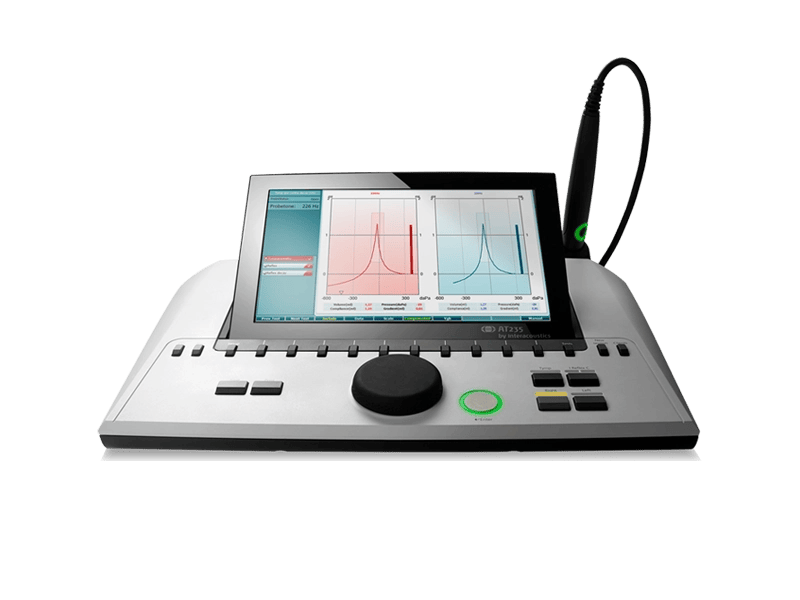

Model Name : AT235

The AT235 represents an automated middle ear analyzer designed to cater to diagnostic and clinical assessments with ease. It boasts additional features such as pure tone audiometry and the Modified Hughson Westlake audiometry test, making it a comprehensive tool for auditory evaluation.

Features at a Glance:

+400 to -600 daPa
High resolution color display
Direct printing to PC printers
User-defined protocols
HDMI output
Child distraction function
Internal memory that can store up to 500 clients and 50,000.

Interacoustics

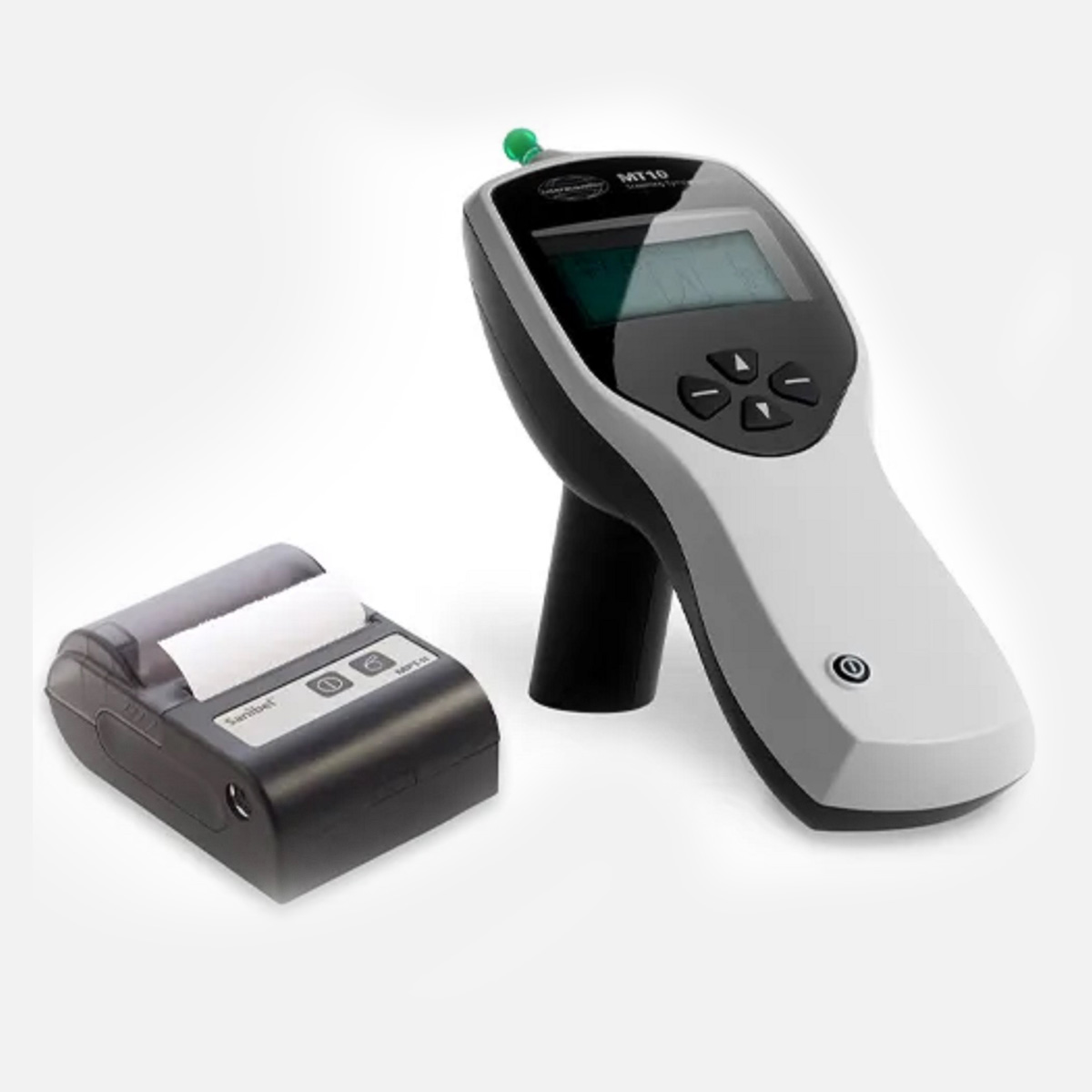

Model Name : MT10

The MT10 is excellently tailored for diagnostic purposes, meticulously capturing tympanograms and offering optional reflex response recordings with remarkable detail. With the MT10, you can identify conditions like otitis media, perforated eardrums, cholesteatomas, and specific neurological disorders.

Features at a Glance:

-400 to +200 daPa
Ipsilateral Reflexes (optional)
30 patient memory
Tympanometric data transfer
Advanced print layout wizard
Personalized and combined reporting
Advanced report page
Patient and session handling

INVENTIS

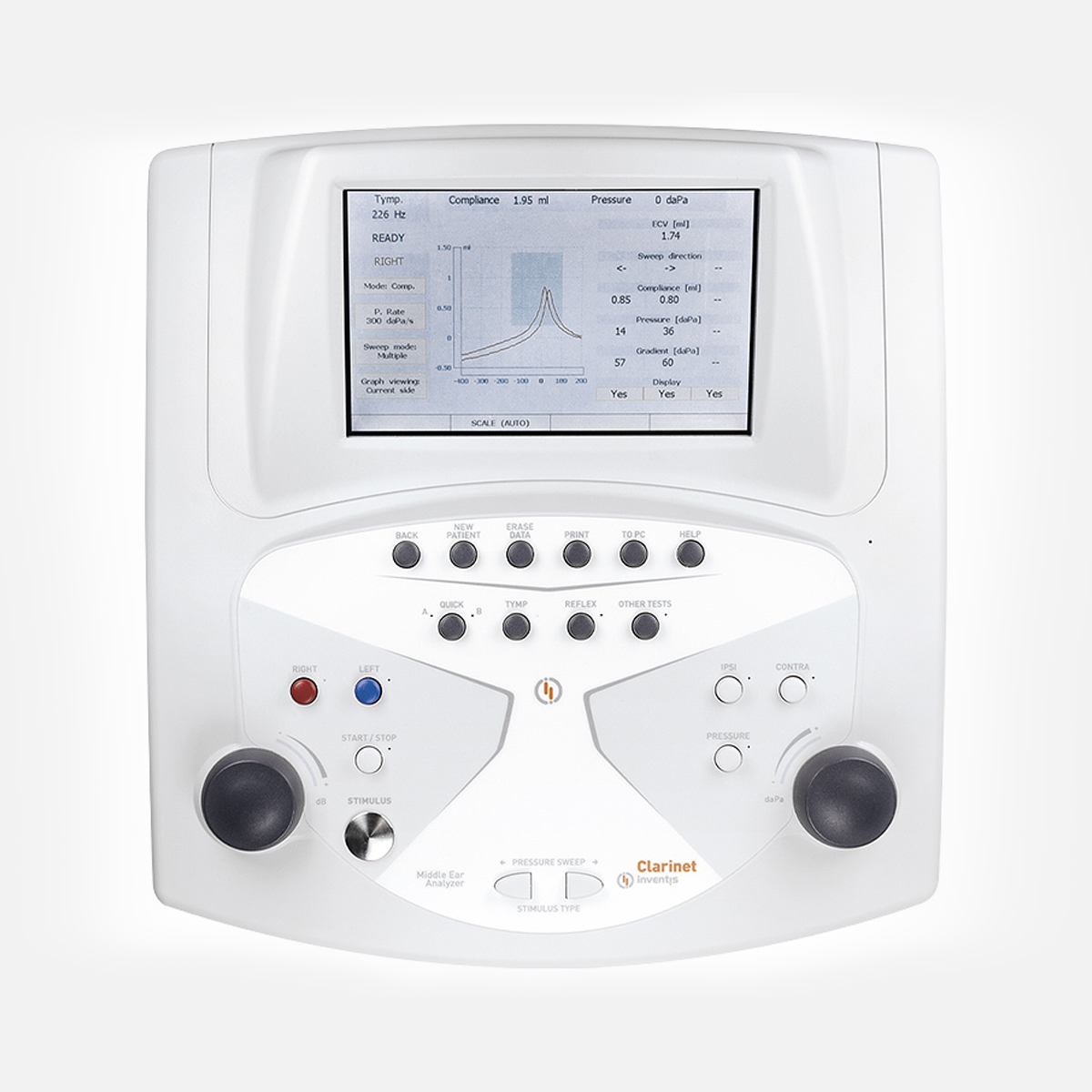

Model Name : Clarinet

The Clarinet serves as a clinical middle ear analyzer, equipped with all necessary tests for a precise investigation of disorders. This includes automatic and manual tympanometry, acoustic reflex threshold, decay, and latency examinations, as well as ETF for both intact and perforated eardrums, and high-frequency and multi-component tympanometry.

PROBE TONE :

Frequency: 226 Hz, 678, 800, 1000 Hz (Clarinet Plus only)
Level: 85 dB SPL (@ 226 Hz), 80 dB SPL (@ 678 Hz), 75 dB SPL (@ 800, 1000 Hz)

ADMITTANCE MEASUREMENT SYSTEM :

Measurement range:
-2.0 to 8.0 mmho (@ 226 Hz)
-4.0 to 16.0 mmho (@ 678, 800 and 1000 Hz)

AVAILABLE TESTS :

Tympanometry (automatic and manual)
Multi-component tympanometry (Plus only)
Acoustic Reflex Threshold (automatic and manual)
Acoustic Reflex Decay
Acoustic Reflex Latency
Eustachian Tube Function (intact and perforated TM)

ACOUSTIC REFLEX DECAY TEST

Ipsilateral and contralateral stimulation
Non-acoustic stimulation
Test duration: 10 sec or 20 sec (selectable)

INVENTIS

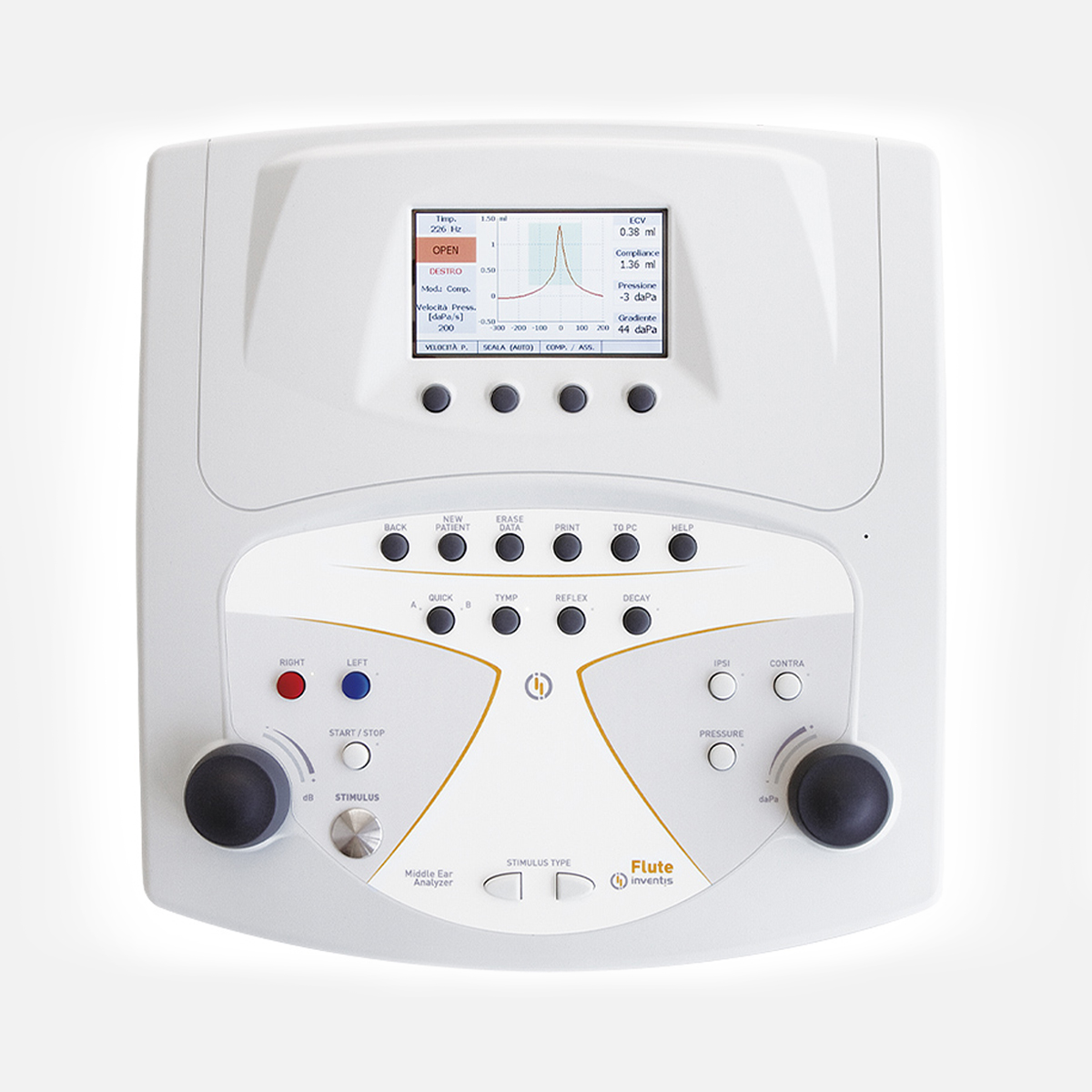

Model Name : Flute

Flute functions as a diagnostic middle ear analyzer, conducting swift and reliable automatic sequences of tympanometry and reflex threshold tests. Moreover, it conducts manual reflex and reflex decay tests, ETF tests, and high-frequency tympanometry with exceptional precision and efficiency.

PROBE TONE :

Frequency: 226 Hz; 1000 Hz (Flute Plus w/optional license and Flute HF)
Level: 85 dB SPL (@ 226 Hz); 75 dB SPL (@ 1000 Hz)

VOLUME RANGE :

0.2 to 8.0 ml (at 226 Hz)
0.9 to 16 mmho (at 1000 Hz) (Plus and HF)

PRESSURE SYSTEM :

Rotary type pump with endless flow
Manual pressure adjustment available in the tympanometry and reflex tests (Flute Plus only)

AVAILABLE TESTS :

Tympanometry (automatic)
Acoustic Reflex Threshold (automatic)
2 Automatic test sequences (tympanometry + reflex test)
Only Flute Plus
Tympanometry (manual)
Acoustic Reflex Threshold (manual)
Acoustic Reflex Decay
Eustachian Tube Function (intact TM)
Only Flute HF
Eustachian Tube Function (intact and perforated TM)

ACOUSTIC REFLEX DECAY TEST

Ipsilateral and contralateral stimulation
Non-acoustic stimulation (Flute Plus only)
Stimulus ON-Time: selectable from 0.5s to 2.5s
Stimulus OFF-Time: selectable from 0.5s to 2.5s
Four different tests available:
Automatic threshold
Fixed intensity
Growing intensity
Manual mode (Flute Plus only)

INVENTIS

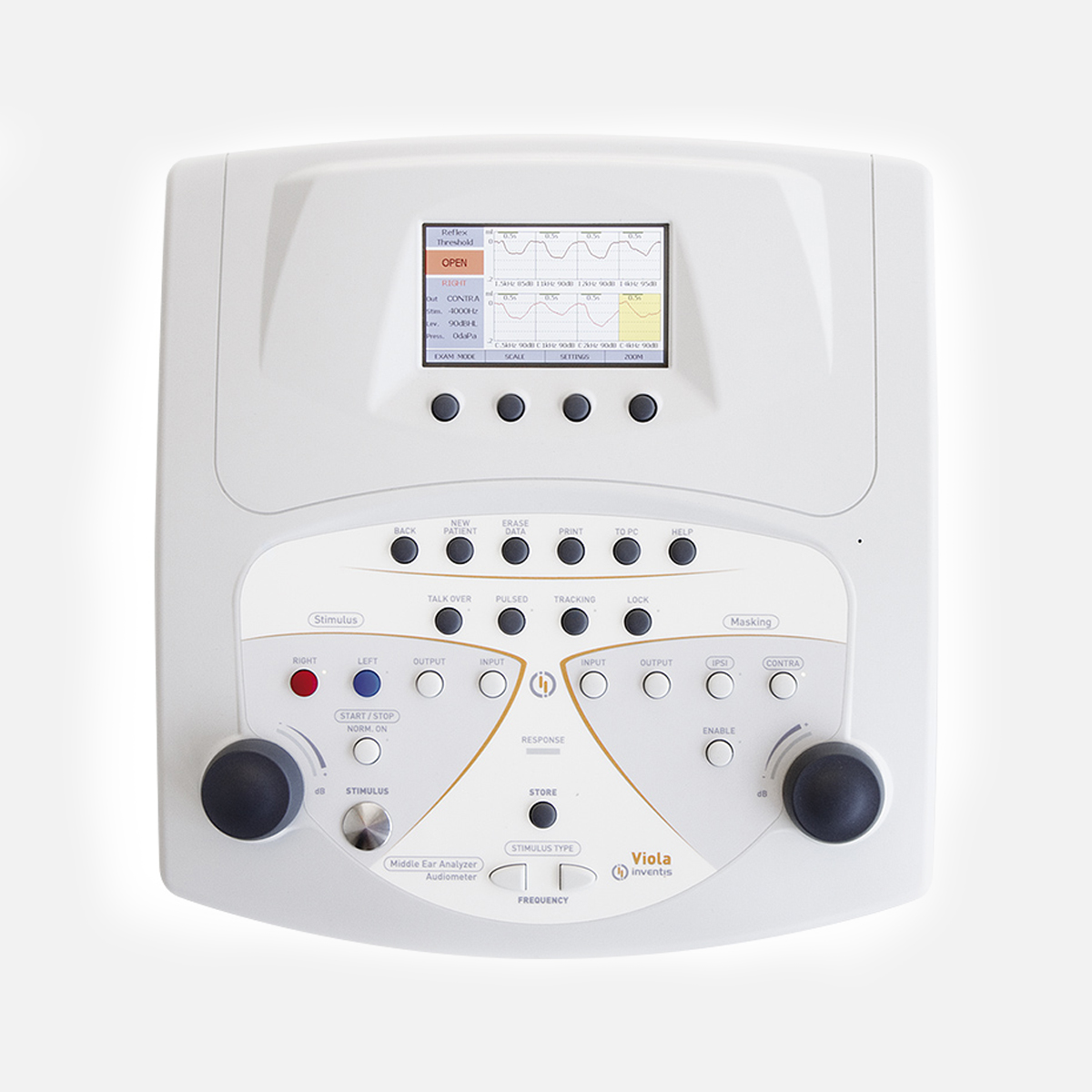

Model Name : Viola

Viola is a combination unit that merges a screening middle ear analyzer, providing ultrafast and dependable tympanometry and reflex tests, with a diagnostic audiometer capable of conducting threshold and speech examinations in both air conduction (AC) and bone conduction (BC).

AUDIOMETER SPECIFICATIONS AVAILABLE
SIGNALS

Stimulus: pure tone, warble tone
Masking: NBN, WN, SN
Only Viola Plus:
2 external inputs for speech audiometry
MIC input for live speech audiometry
Internal input (flash memory) for speech audiometry

SIGNALS SPECIFICATION :

Attenuator step: 5 dB
Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRASDUCERS :

AC: TDH-39 / DD45 headphones, ER-3C/ IP30 insert earphones
BC: B-71 bone vibratorInsert masking earphone: IME-10

PATIENT-OPERATOR COMMUNICATION :

Talk over: built-in or external microphone
Talk back (Viola Plus only): through built-in
speaker or monitor headset (included); patient
microphone included
Patient response trigger

DEVICE SPECIFICATIONS :
PRINTER

Optional integrated thermal printer
Paper size: 112 mm

CALIBRATION

Validity: 12 months
All the parameters set through the device software

INVENTIS

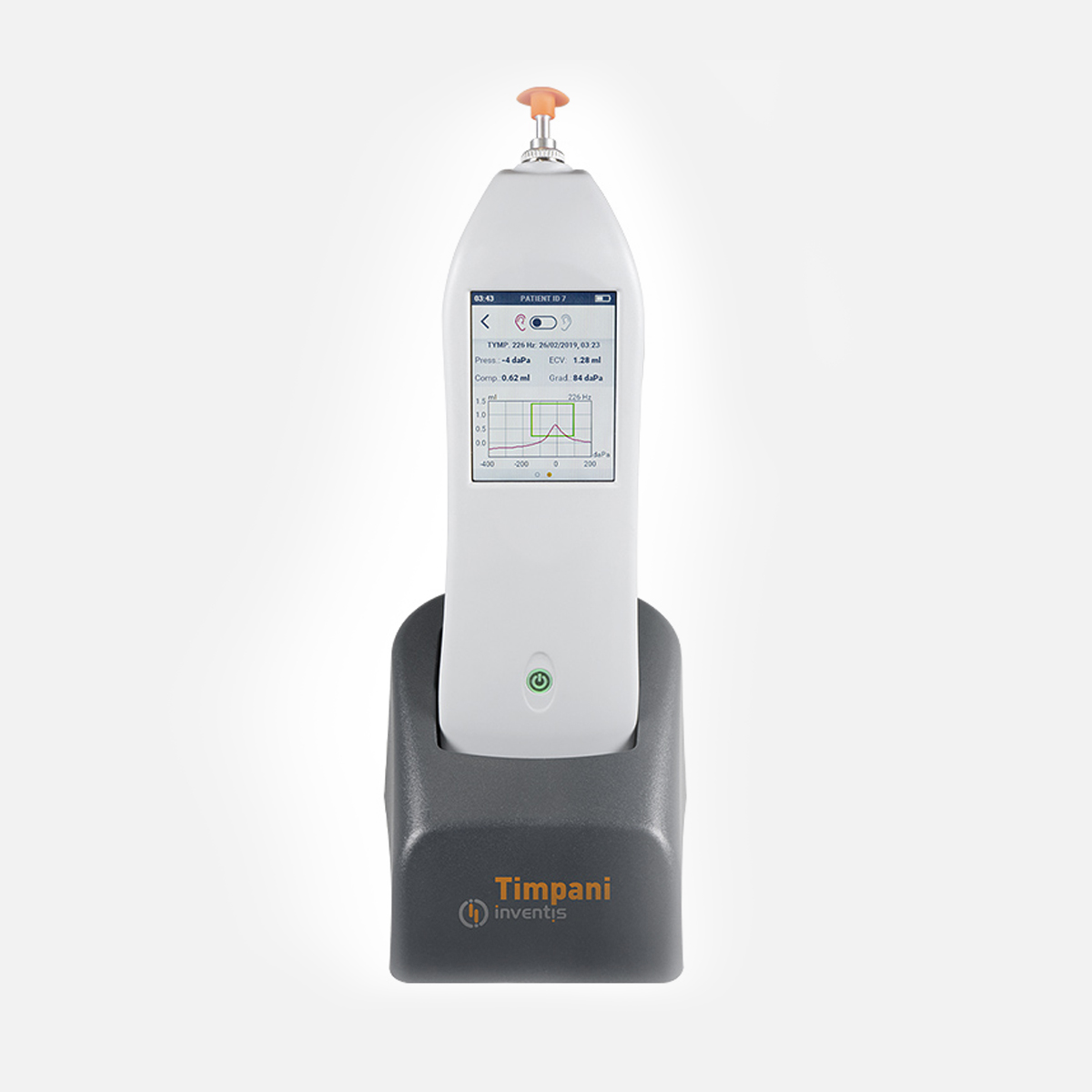

Model Name : Timpani

Timpani, a portable tympanometry, provides automatic tympanometry and ipsi lateral acoustic reflex tests, along with screening for pure tone audiometry. Its rapid pressure pump system and specialized output for headphones distinguish Timpani as the sole handheld unit capable of conducting precise and thorough examinations.

AUDIOMETER SPECIFICATIONS
AVAILABLE OUTPUTS AND TRANSDUCERS

AC: supra-aural DD45, insert earphones ER-3C

AVAILABLE STIMULI AND LEVELS :

Stimulus: pure tone (see table)
Attenuator step: 5 dB
Intensity: -10 to 100 dB HL
Frequency range: 125-8000 Hz

DEVICE SPECIFICATIONS :
PRINTER

Optional integrated Bluetooth thermal printer
Paper dimensions: 58mm

CALIBRATION :

Validity: 12 months
All the parameters set through dedicated software.

COMPUTER INTERFACE :

Connection: USB (driverless)
Compatible software: Inventis Maestro

DISPLAY :

Type: Graphical color TFT LCD, capacitive touchscreen
Size: diagonal 2.8”, 43.2 x 57.6 mm
Resolution: 240 x 320 x RGB

POWER SUPPLY :

Internal battery: Lithium-Ion rechargeable battery
Battery life: more than 4 hours of continuous use
Main Unit: 5Vdc, 1.4A
External adapter USB dedicated: 100-240 Vac, 50/60 Hz, 0.3-0.15A, responding to IEC 60601-1 standard

MECHANICS

Size (WxDxH): 65 x 44 x 240 mm / 2.6 x 1.8 x 9.5 in
Weight: 340 g / 12 oz

Path Medical

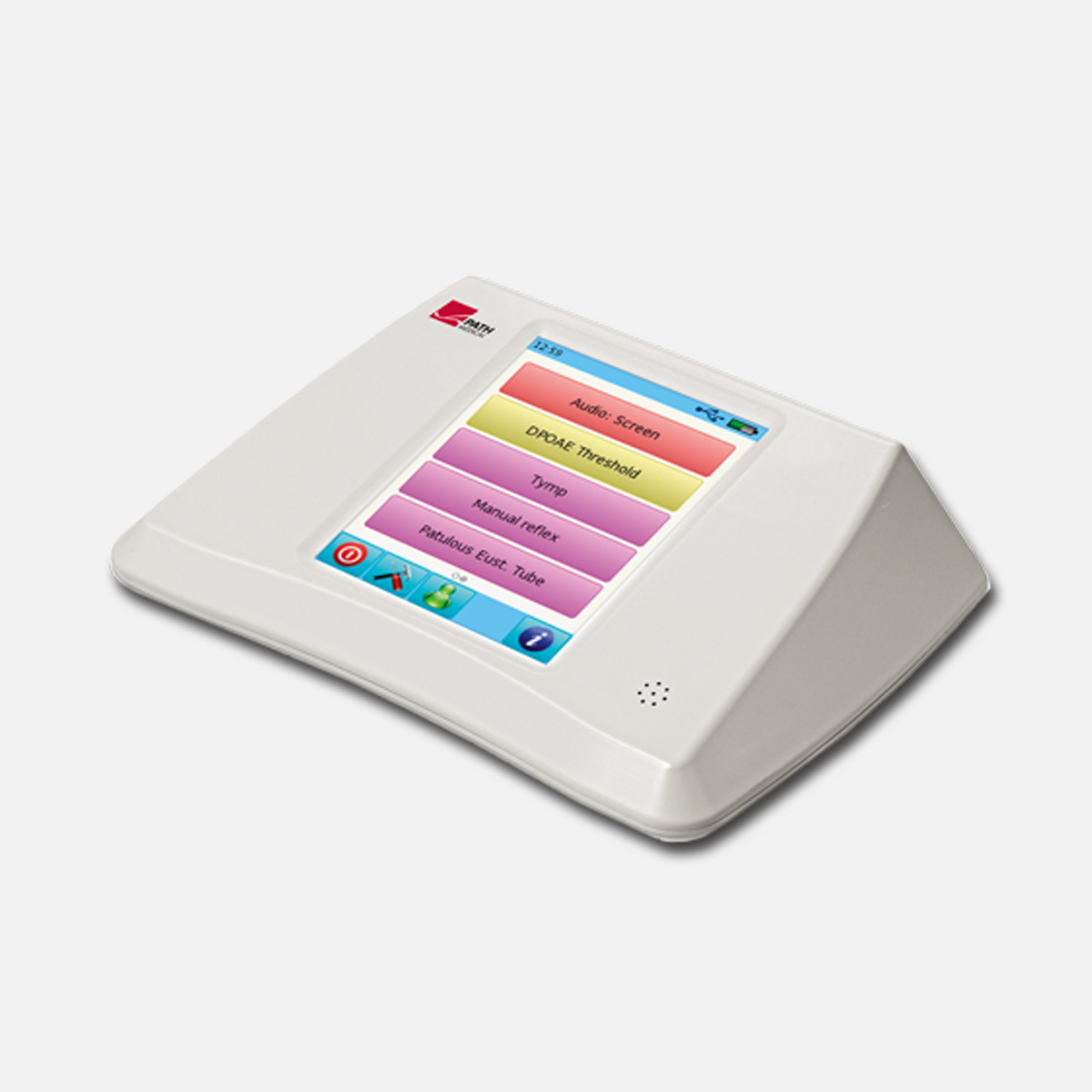

Model Name : Sentiero // Tymp Diagnostic

The SENTIERO DESKTOP diagnostic unit offers Class 1 Tympanometry, Ipsi/Contra reflexes, ETF, and Multi-Frequency testing. Additional features include FMDPOAE pressurized OAEs and the option to add OAE, Pure Tone, and Speech audiometry modules.

DPOAE :

Minimum DPOAE level criterion: L1 – 70 dB and 4096 samples
Stimulus levels L2: 30 to 65 dB SPL; step size: 5 dB

TEOAE :

Stimulation nonlinear protocol , level 85 db and
Sample rate: 48 kHz

Additional features :

Optional Database Software (MIRA) - Data Management test results to patient records with many EMR systems

Technical Specifications :

dimensions: 150 x 210 x 45 mm
weight- 475g
Display: 240 x 320 pix
resistive touch screen,
real time-clock,
Power consumption: max. 2 W.

Maico

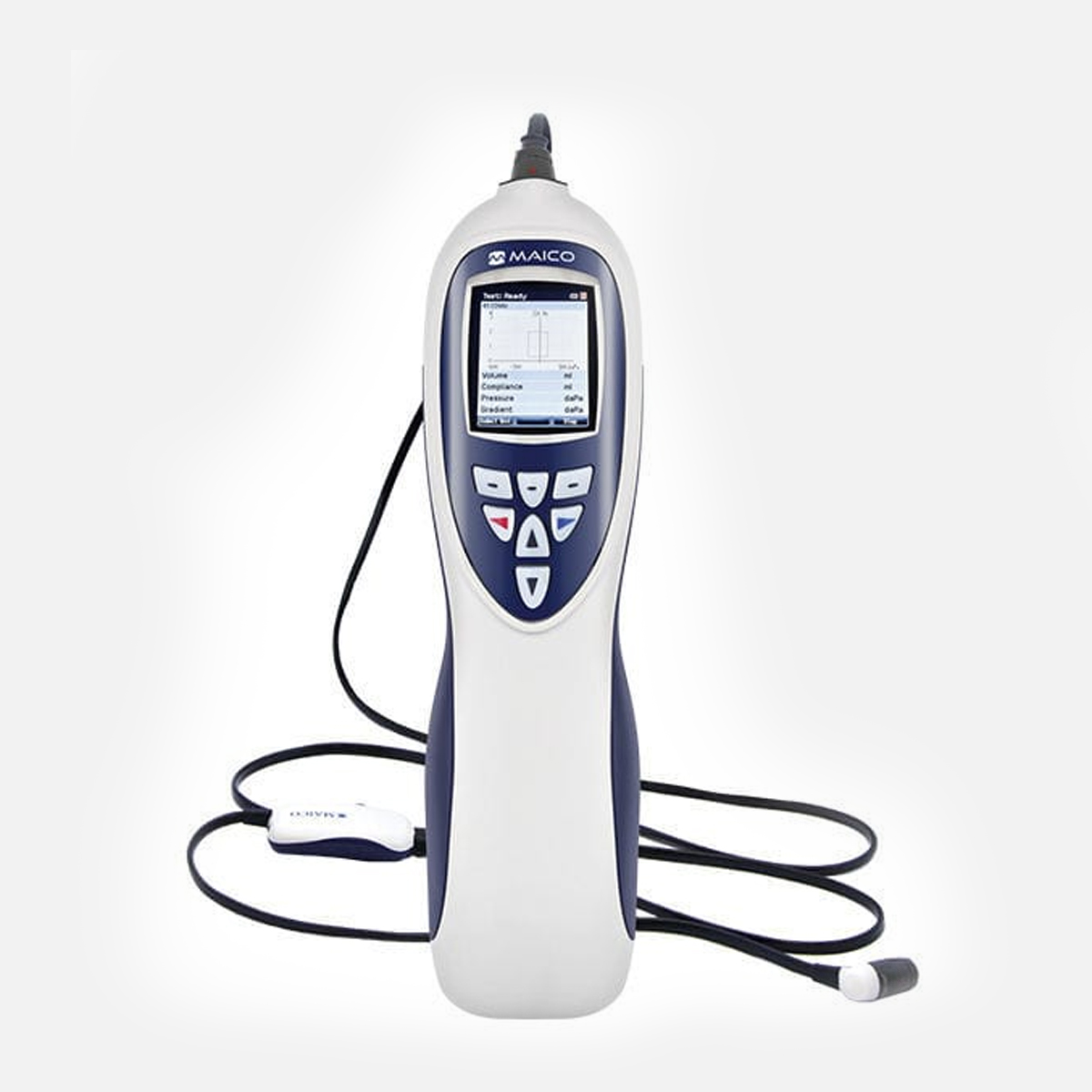

Model Name : easyTymp Diagnostic

The easyTymp Pro combines the simplicity of a handheld screening tool with the precision of a diagnostic device, offering reflex decay and Eustachian Tube Function (ETF) testing alongside standard features

Features at a glance:

Very fast and reliable middle ear measurements
Probe tone 226 Hz
Optional high frequency probe tone 1 kHz
Reflex frequencies 500 Hz, 1 kH z, 2 kHz, 4 kHz (ipsi- and contralateral)
Reflex decay testing (ipsi- and contralateral)
Eustachian tube function (ETF) test for intact and perforated eardrums
Automatic tests – self-explanatory to use
Full color, high resolution display
Stores more than 1000 measurements
Optional thermal printer
Optional MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

Maico

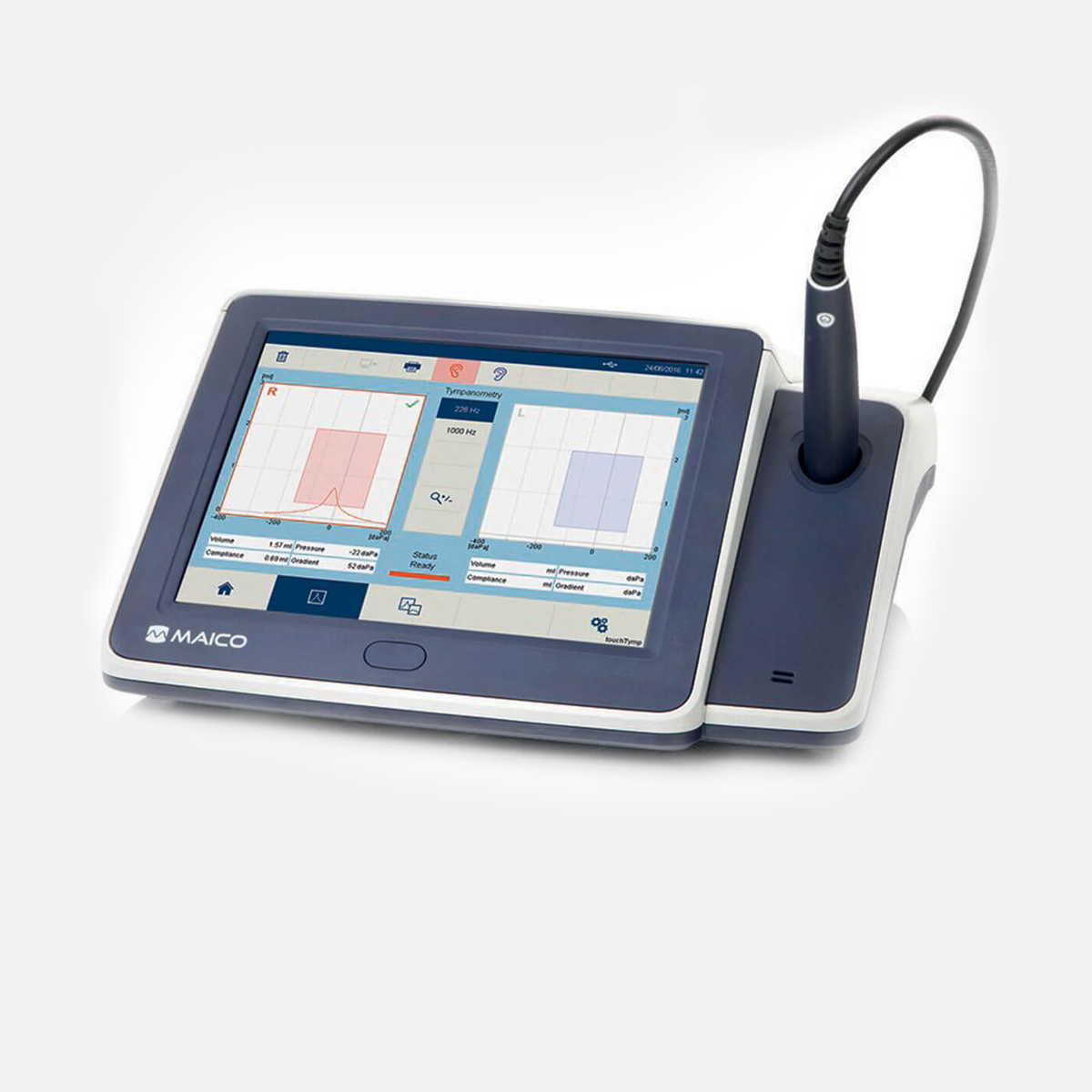

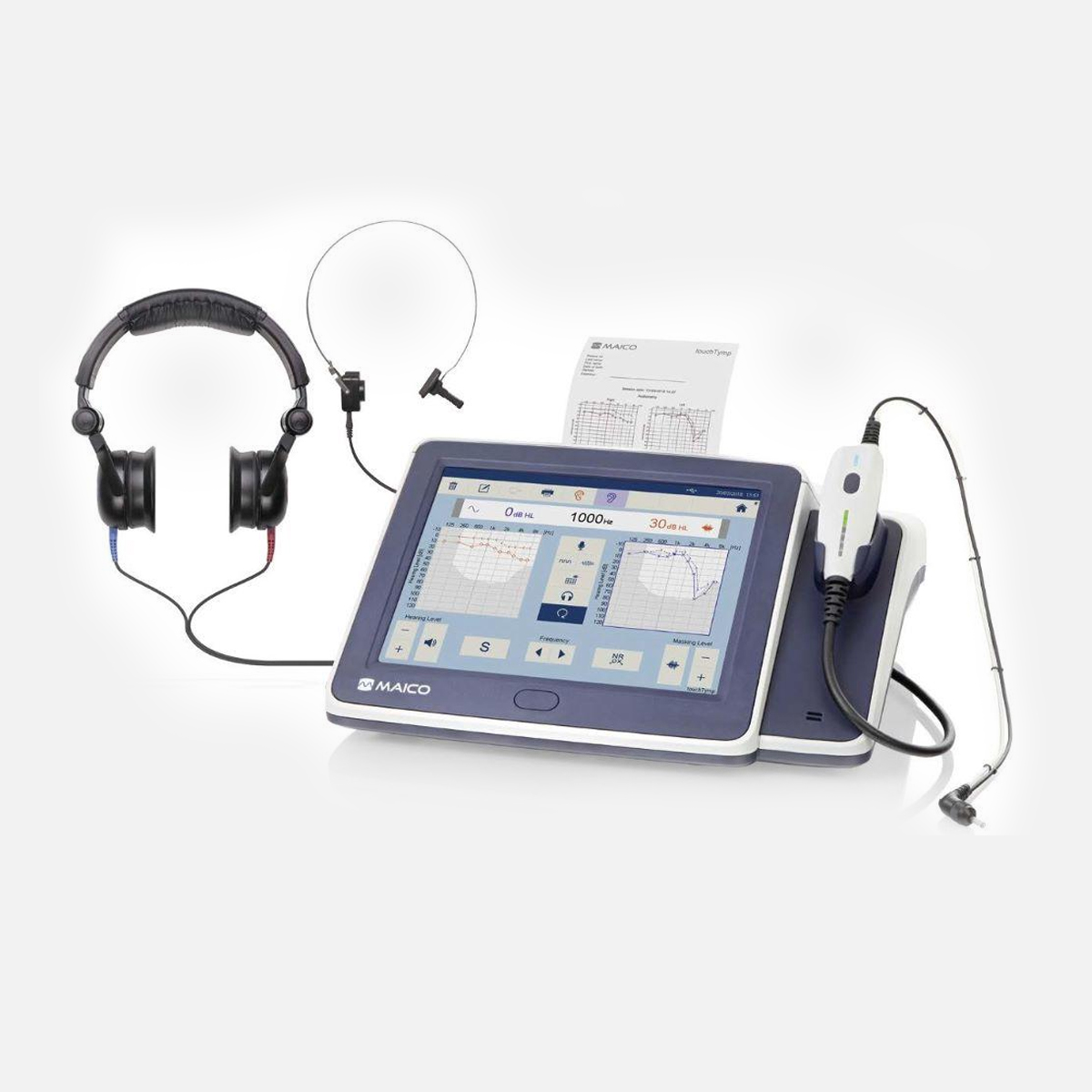

Model Name : touchTymp Screening

Enhance your tympanometry screenings with our touchTymp solutions, MI 24 and MI 26, featuring a user-friendly interface on a spacious 10.4” touchscreen for effortless parameter adjustments and streamlined workflow

Features at a glance:

High resolution and quick screen transitions
Full touch-based interface for intuitive handling
Handheld pen probe
Probe tones 226 Hz, optional 1 kHz
Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsilateral and optional contralateral)
MI 26 Version comes with included AC & optional BC audiometry available
Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management
Built-in printer

Maico

Model Name : touchTymp Diagnostic

Our diagnostic touchTymp versions offer intuitive ease of use, akin to the screening versions, while also providing additional diagnostic features for a comprehensive middle ear evaluation.

Features at a glance:

High resolution and quick screen transitions
Full touch-based interface for intuitive handling
Diagnostic shoulder box probeProbe tones 226 Hz, 678 Hz, 800 Hz and optional 1 kHz
Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz, BB, HP, LP (ipsilateral and optional contralateral)
Reflex Decay test (ipsilateral and contralateral)ETF test for intact and perforated eardrumstouchTymp MI 36 includes AC & BC audiometryBuilt-in printer
Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management

Maico

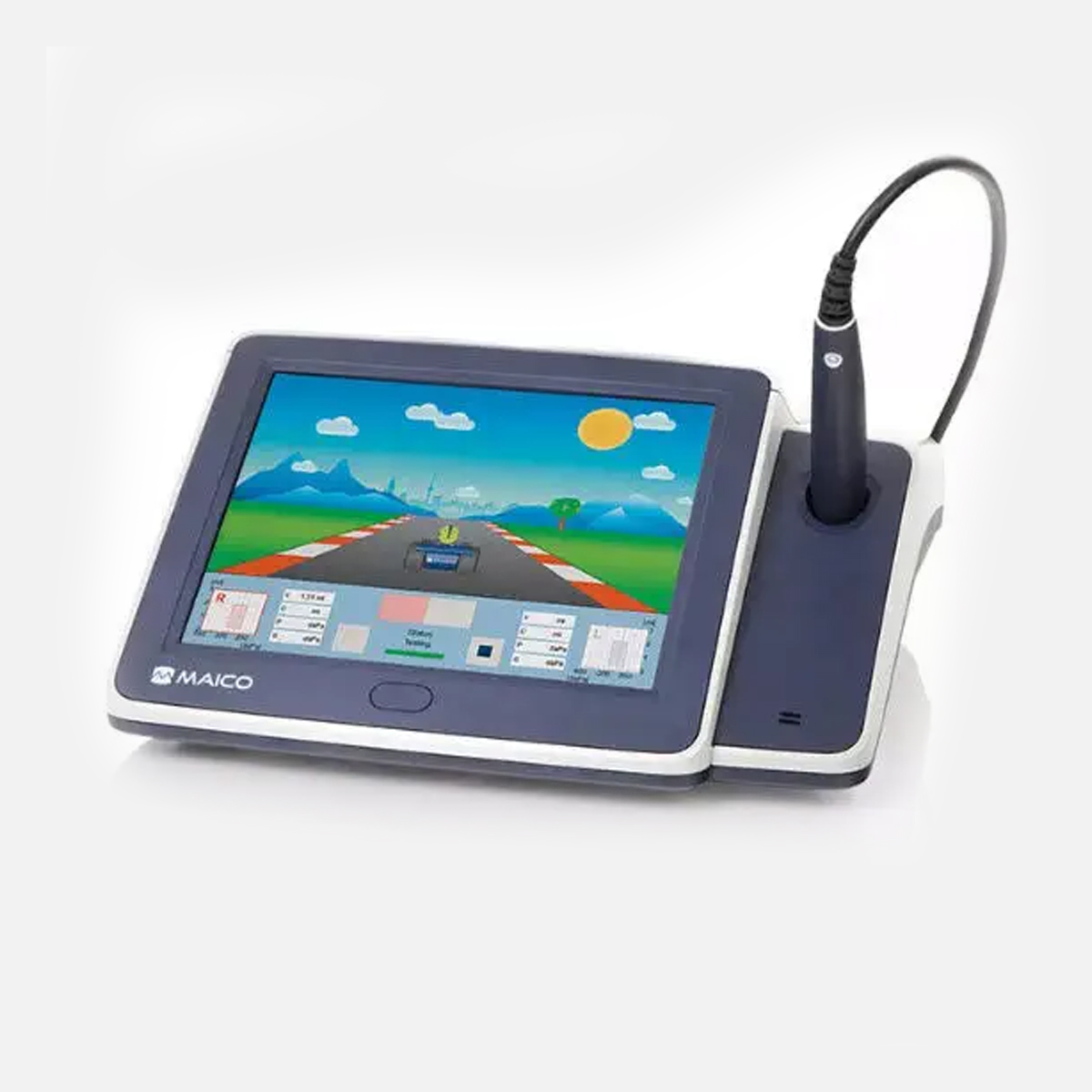

Model Name : touchTymp RaceCar

The touchTymp RaceCar streamlines immittance testing by engaging children with an animated car race during tympanometry or reflex screening, making the process quick and enjoyable.

Features at a glance:

Easy, fun middle ear testing for children
Focused, engaged patient means less retesting
Provides test results within seconds
Full touch-based interface for intuitive handling
Customizable to suit individual needs
Built-in printer or data transfer to PC
