OAE

• 2 fixed DPOAE protocols
• 2-5 kHz
• 3 out of 4 for a pass
• Test time of 2 or 4 seconds per frequency
• The diagnostic version of the OtoRead™ gives you the option to also test up to 12 kHz.
• Internal storage of up to 500 tests

• Five wheels for great mobility
• Handle that makes it easy to maneuver
• Retainers for equipment and accessories
• Integrated storage bin for waste

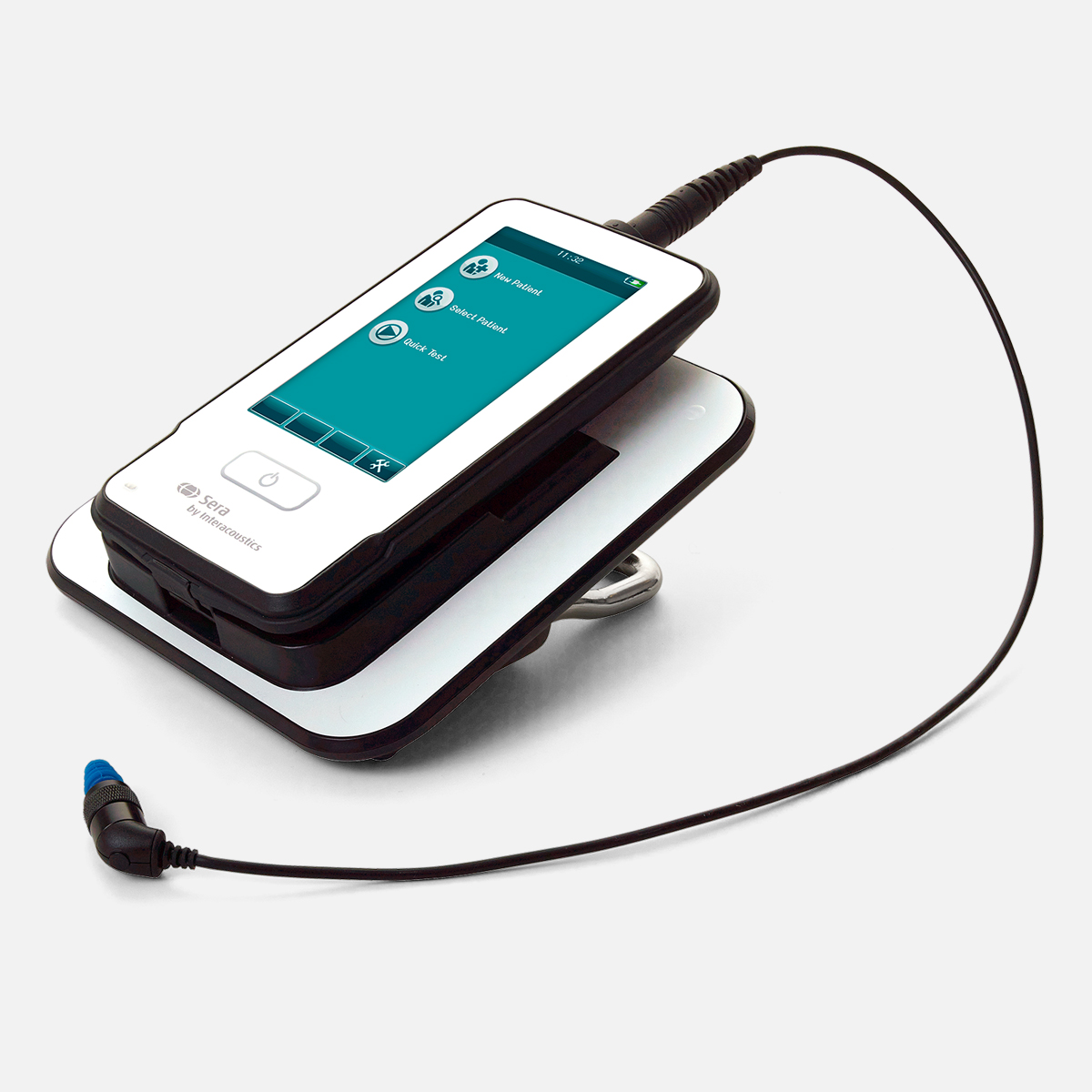

• Storing bracket for Sera

• The frequency range for TEOAE is 500 Hz to 5.5 kHz.
• FFT (fast fourier transform) view (up to 8 kHz).
• For DPOAE you can test within the frequency range of 500 Hz to 10 kHz.

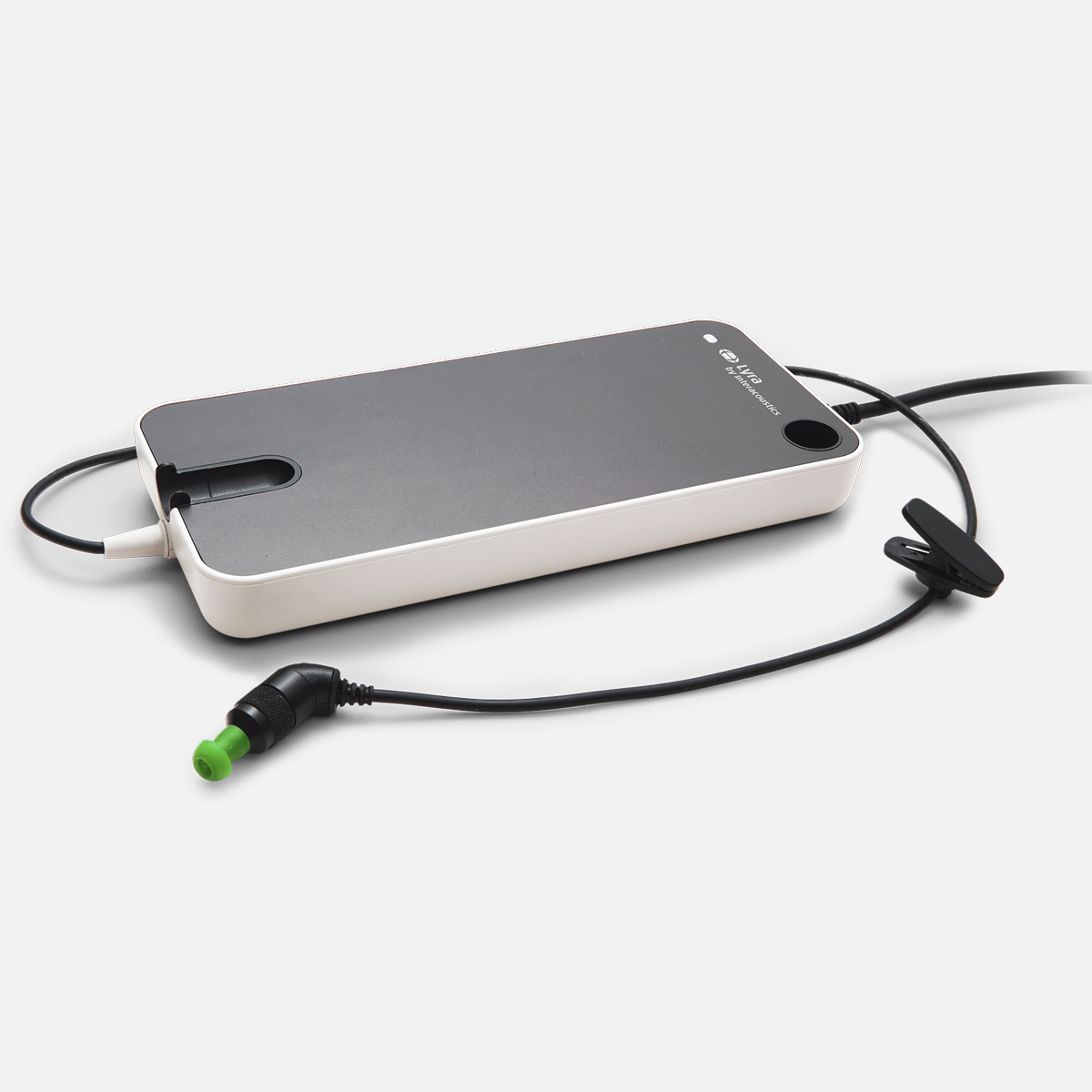

• Lyra is fully powered by the USB connection, eliminating the need for an external power supply.

• Solid and noise immune hardware

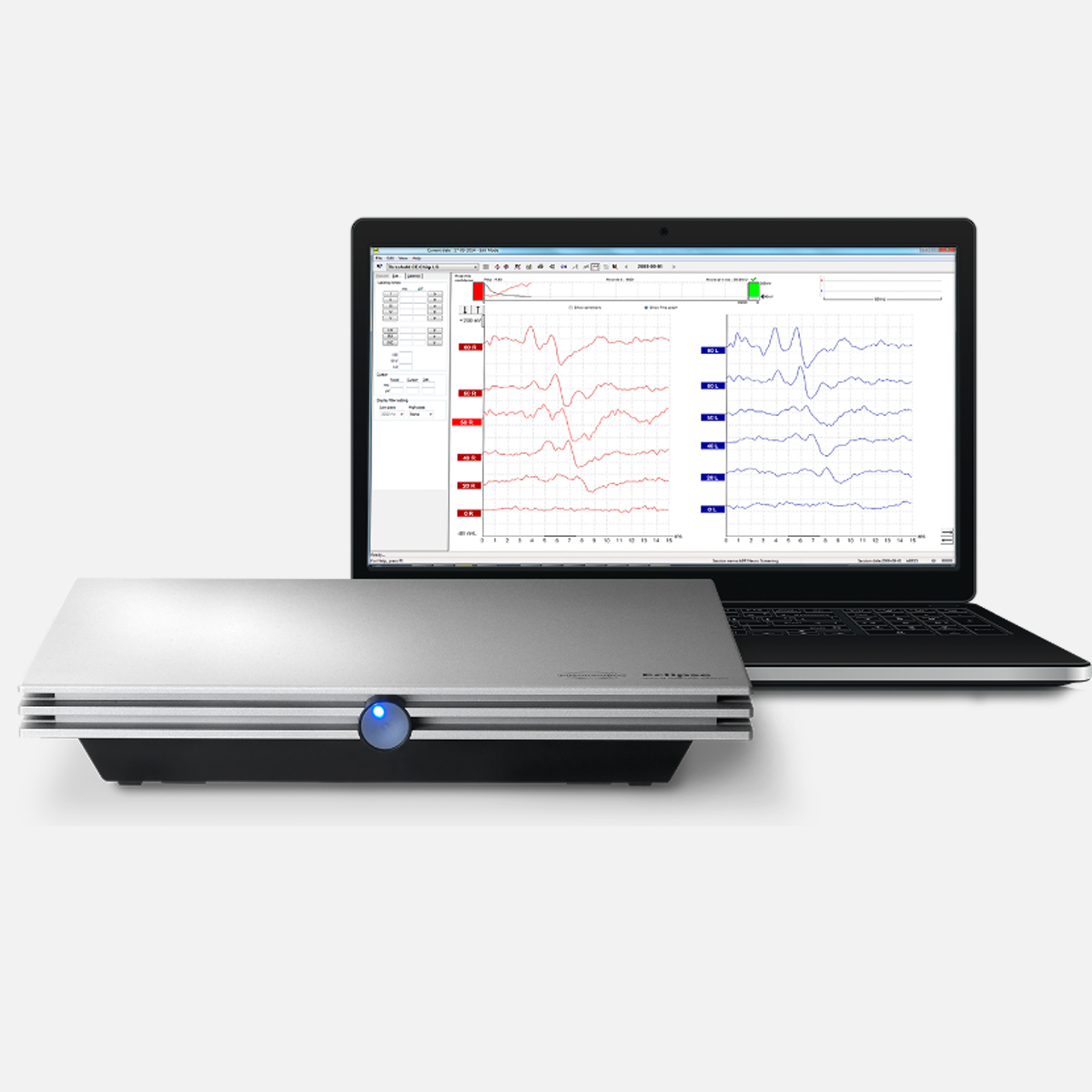

• Modular platform
• Unique pre-amplifier technology ensures optimum performance in electrically hostile environments
• Intuitive interfaces, well-designed layouts, freedom to customize settings
• Bayesian weighting
• Residual noise calculator
• Fmp calculator
• All the features of EP15

DPOAE :

• narrow band noise around 2f2-f1
• Frequency ratio f2/f1: 1.22.
• Minimum DPOAE level criterion: L1 – 70 dB
• Safety standards - EN 60645-1 class 4

TEOAE :

• low Noise detection upto 85 dB peSPL
• Stimulation nonlinear protocol , level 85 db and Sample
• rate: 48 kHz

Additional features:

• Stores up to 1000 patients (EMR System)
• PC-SW database (M IRA) test results via USB
• Optional Database Software - Data Management

Technical Specifications:

• Device dimensions: 209 x 98 x 52 mm
• weight -500g
• Display: 240 x 320 pixel;
• resistive touch screen
• real time-clock
• Power consumption: max. 2 W

Features at a glance:

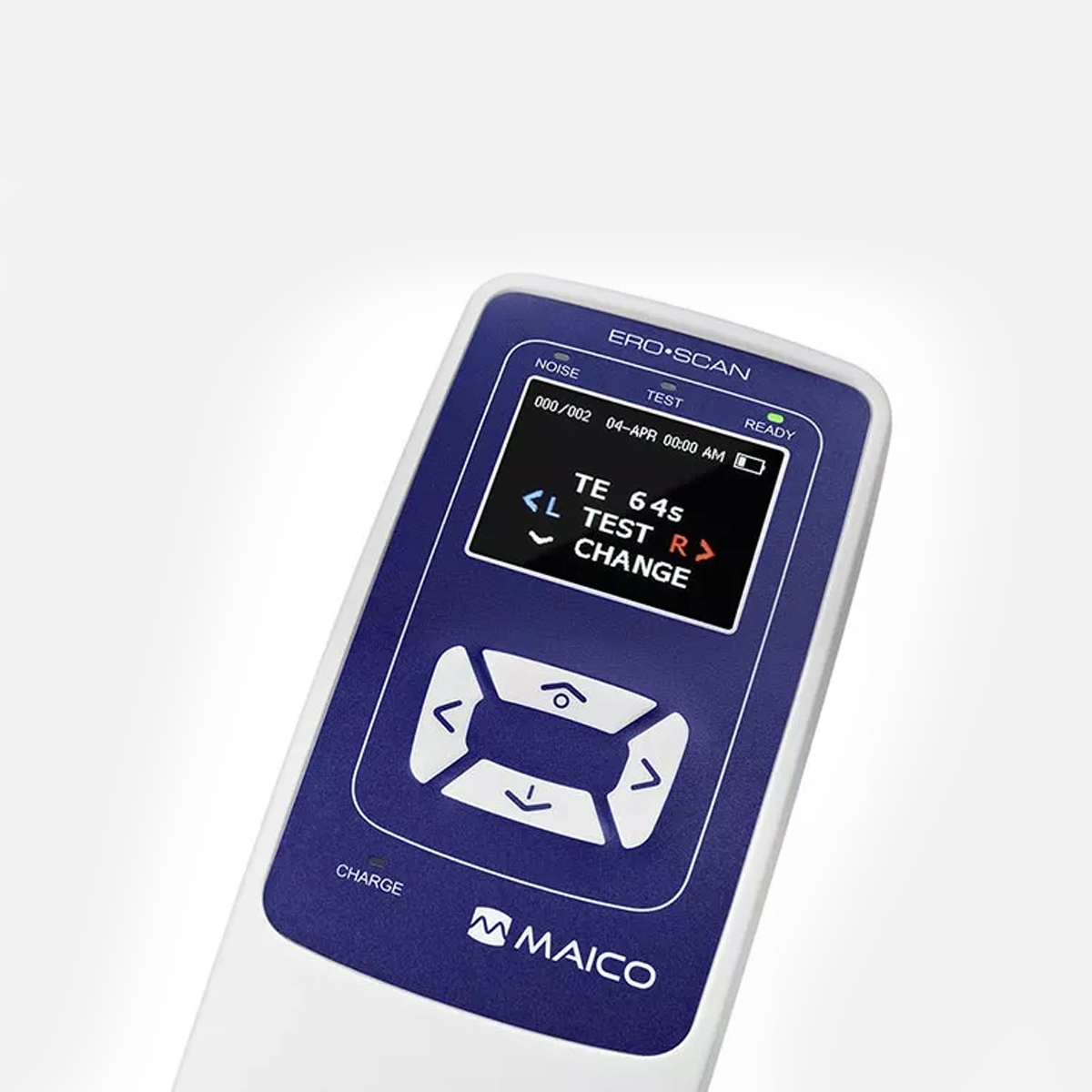

• Screening and diagnostic measurements with TEOAE and/or DPOAE
• Fast automatic OAE screening with Pass/Refer results and graphical displays
• 2 DP and 2 TE protocols for screening devices, 5 DP and 3 TE protocols for diagnostic devices
• High noise immunity for operation in normal clinical environment
• Lightweight, small earprobe
• Sharp OLED display

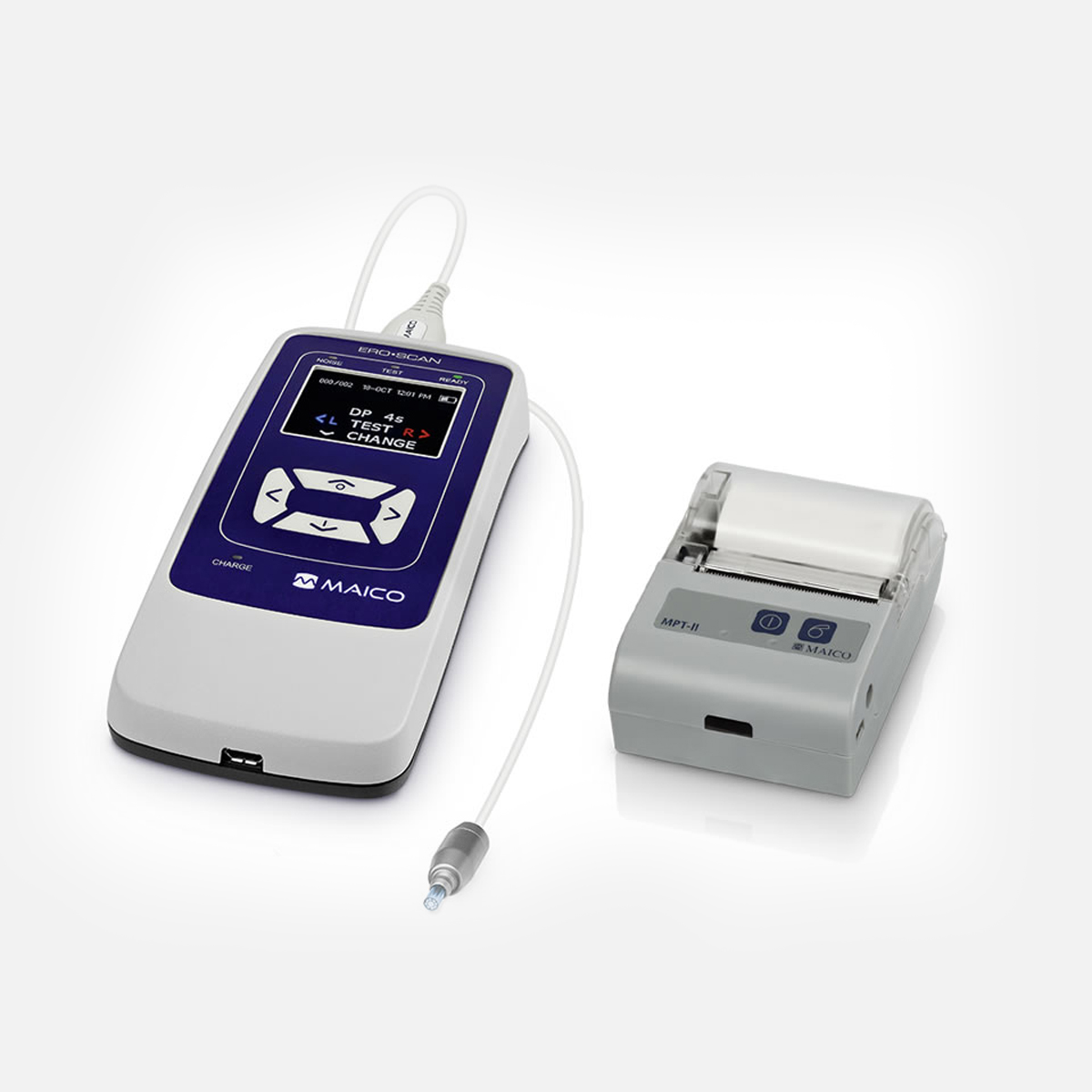

• Optional wireless printer

Features at a glance:

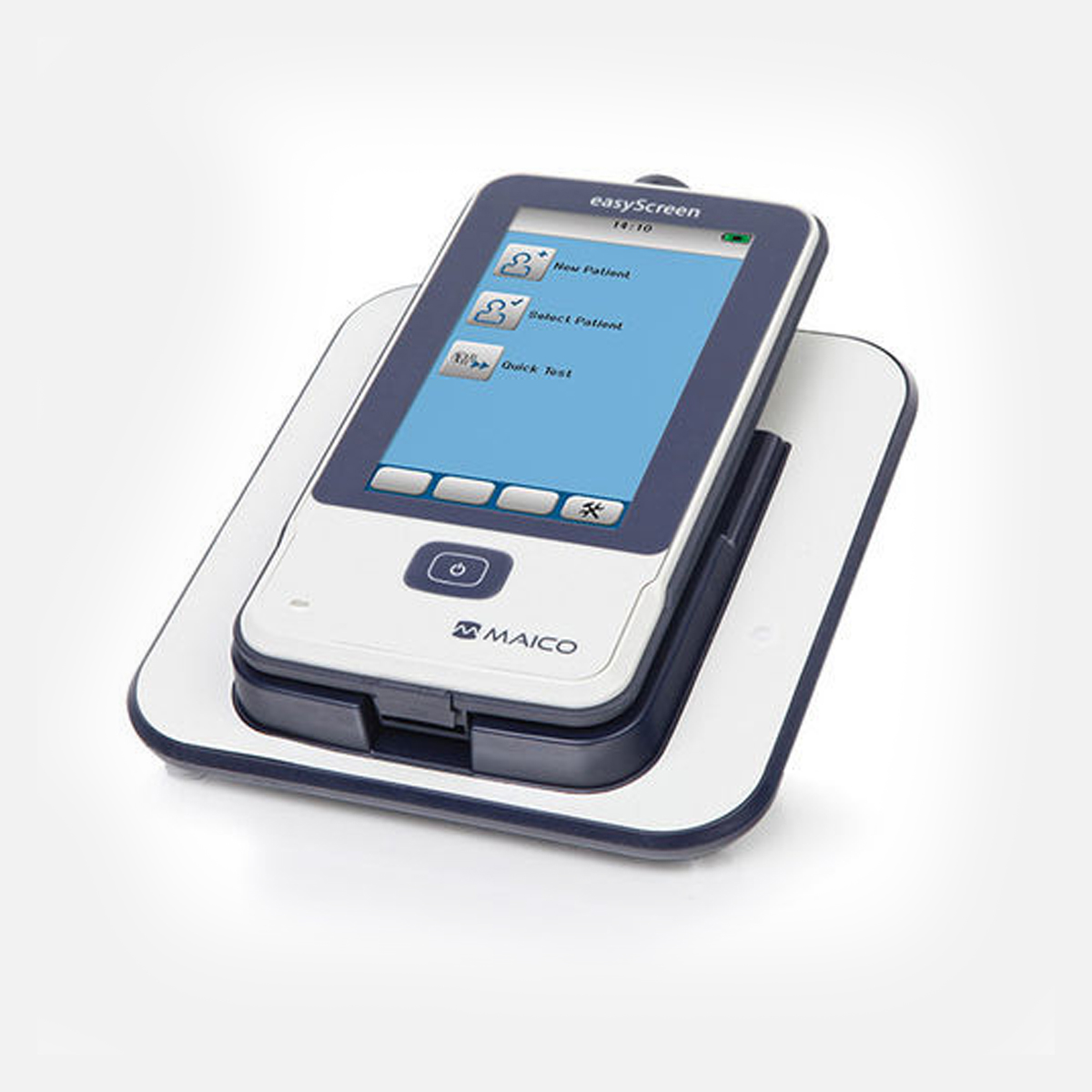

• Fast and accurate ABR + OAE Hearing Screening
• Powerful automated ABR Screening method with CE-Chirp® stimulus
• Intuitive user interface and large colour touchscreen
• Pocketsized and lightweight
• Optional HearSIM™ patient database and device manager
• Optional easyCart for an organized mobile workplace
